Alignment: Specifications

Caster

Caster angle  ......................................................................................................................................................................................................  3° 45' ± 1°

Camber

Camber angle:

Front  ...........................................................................................................................................................................................................  0° 00' ± 1°

(Maximum difference between the front left and right side: 1° 00')

Rear  ...........................................................................................................................................................................................................  -1° 30' ± 1°

Toe-in

Front toe-in  ...................................................................................................................................................................................  0 ± 3 mm (0 ± 0.12 in.)
Rear toe-in  .........................................................................................................................................................................  2.5 ± 2.5 mm (0.10 ± 0.10 in.)

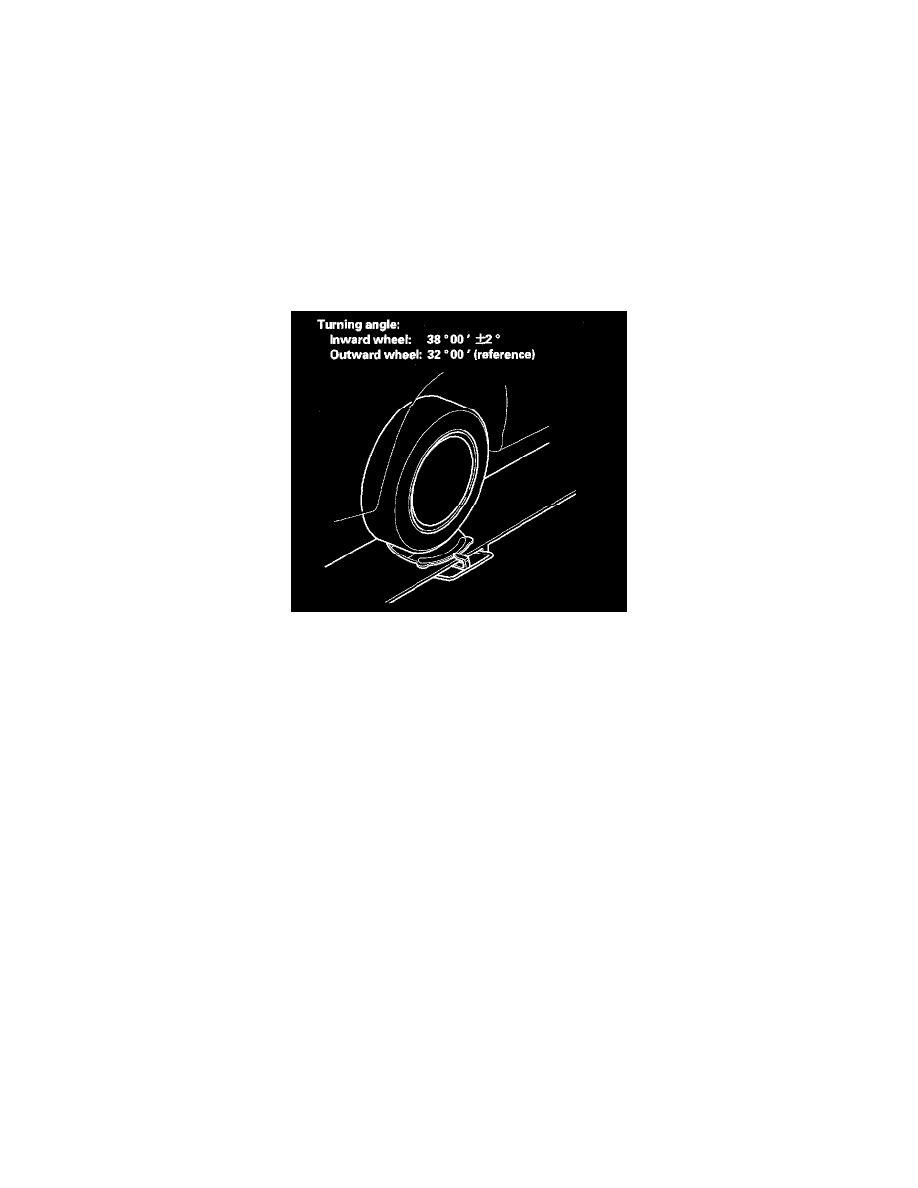

Turning Angle
