Odyssey V6-3.5L (2003)

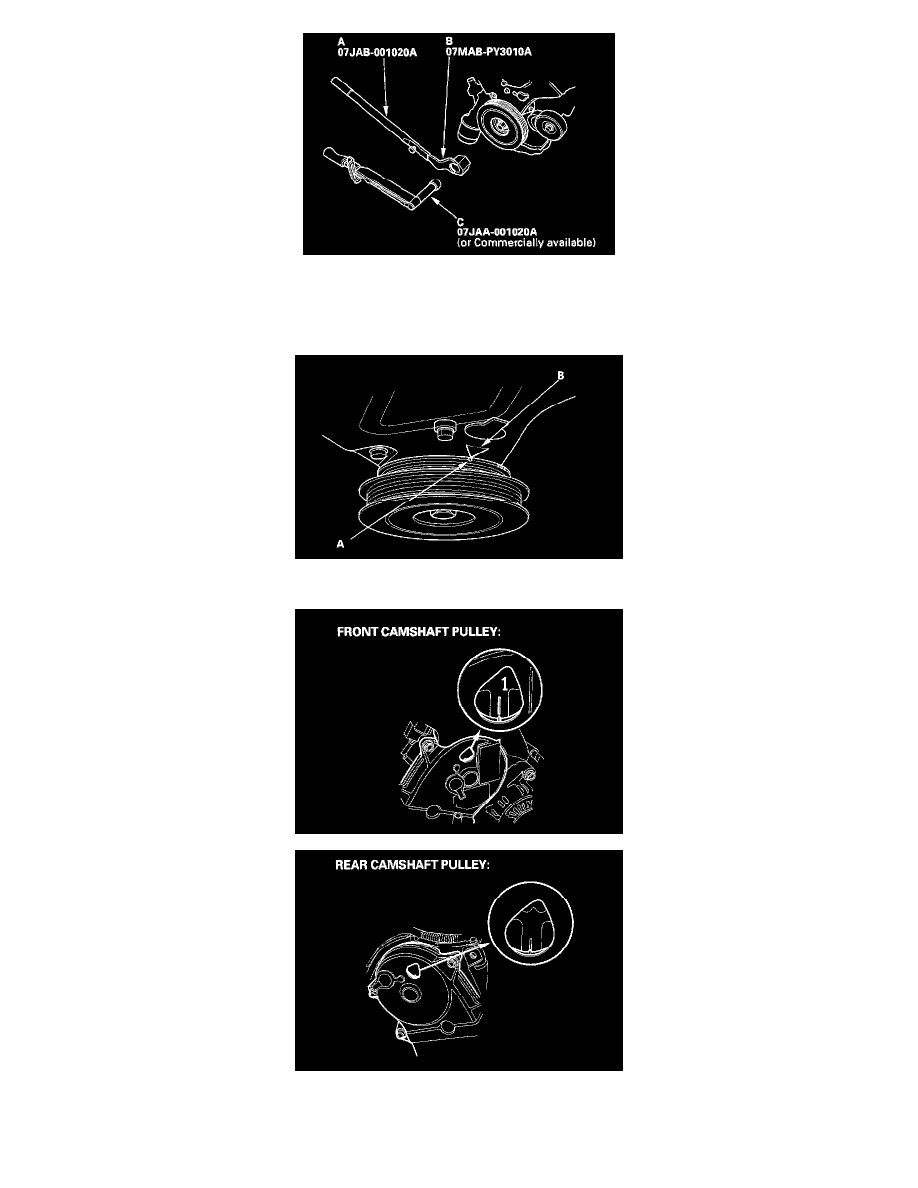

12. Install the crankshaft pulley, and tighten the bolt to 245 Nm (25.0 kgf-m, 181 ft. lbs.). Do not use an impact wrench.
1. Hold the pulley with holder handle (A) and holder attachment (B).
2. Tighten the bolt with a torque wrench and 19 mm socket (C)
13. Rotate the crankshaft pulley about five or six turns clockwise so the timing belt positions on the pulleys.
14. Turn the crankshaft pulley so its white mark (A) lines up with the pointer (B).
15. Check the camshaft pulley marks.
-
If the camshaft pulley marks are at TDC, go to step 16.
-
If the camshaft pulley marks are not at TDC, remove the timing belt and repeat steps 2 through 12.
