Timing Belt: Specifications (page 12 of 17)
- Make
- Honda
- Model
- Pilot
- Engine
- V6-3.5L
- Year
- 2004
- Section
- Timing Belt
MaintenanceSpecifications · page 12 of 17

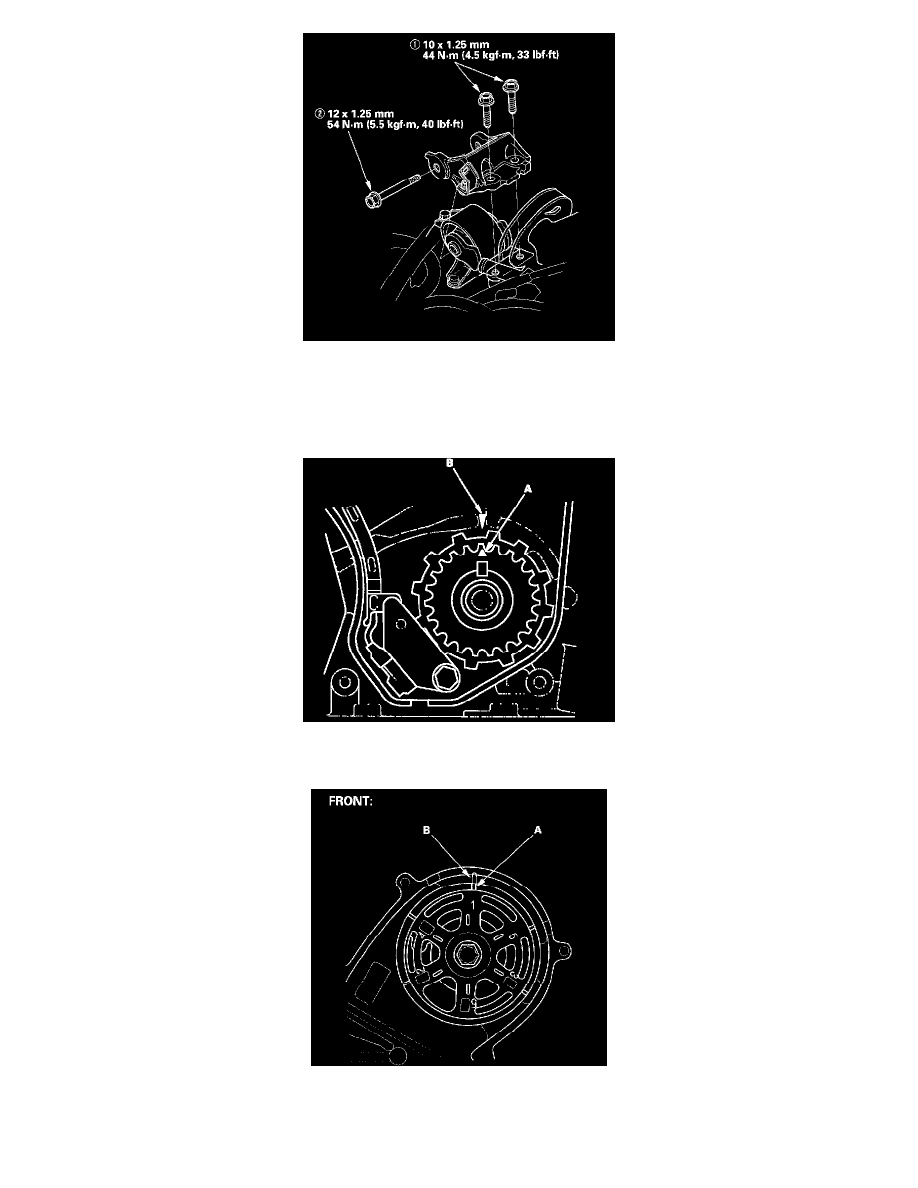

23. Install the side engine mount bracket, then tighten the mounting bolts in the numbered sequence shown.
Used Belt
Follow this procedure when installing a used timing belt.
1. Clean the timing belt pulleys, timing belt guide plate, and the upper and lower covers.
2. Set the timing belt drive pulley to TDC by aligning the TDC mark (A) on the tooth of the timing belt drive pulley with the pointer (B) on the oil
pump.
