Prelude L4-2.3L DOHC (1992)
Cruise Control Servo Cable: Adjustments

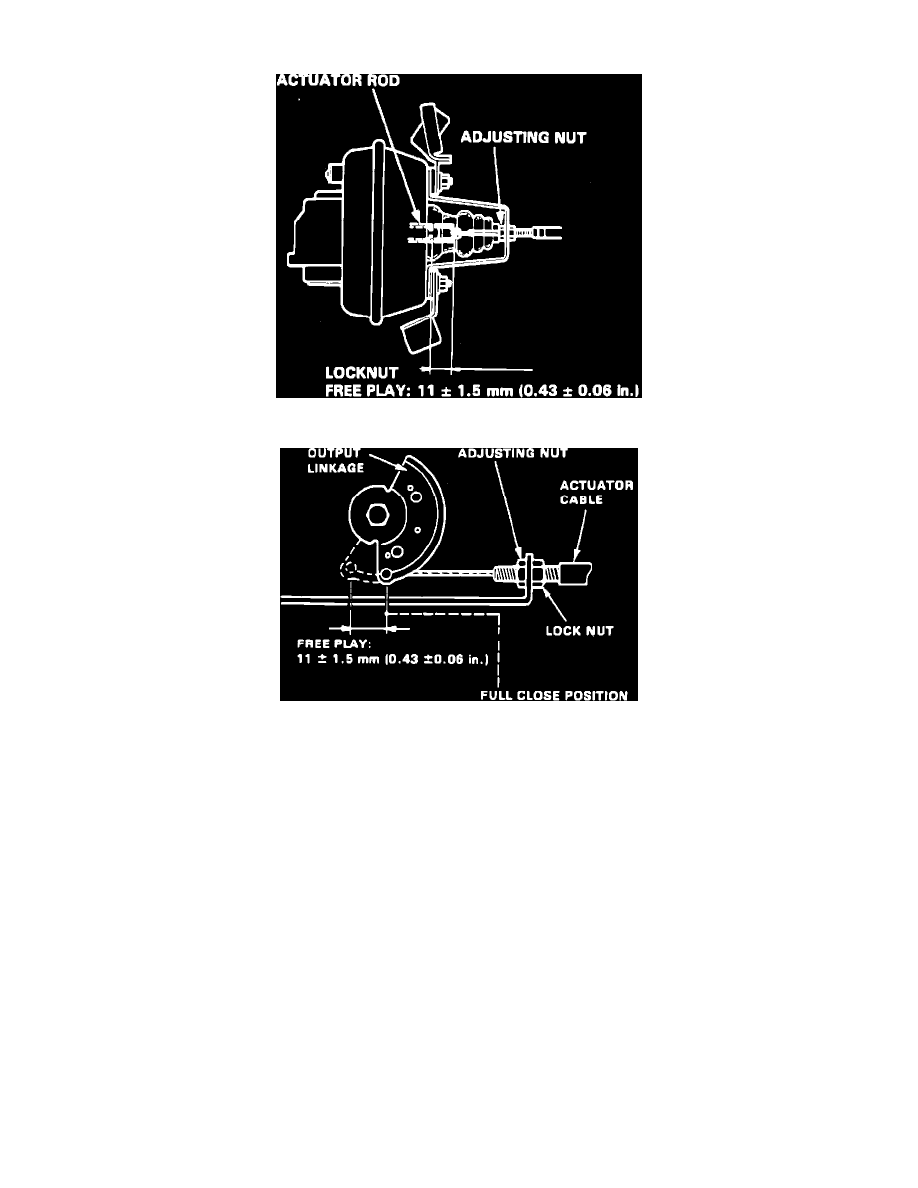

Fig. 7 Actuator Cable Adjustment. 1989 Accord & Prelude
Fig. 8 Actuator Cable Adjustment. Civic & Delsol
1.
Check actuator cable for smooth operation. Cable should not bind or stick in proper operating condition.
2.
Start engine and measure actuator rod movement until cable pulls on actuator lever when engine speed starts to increase. Refer to Figs. 7 and 8 for
locknut freeplay measurement.
3.
If locknut freeplay is not within specifications, loosen locknut and turn adjusting nut as required, Figs. 7 and 8.
4.
Tighten locknut and recheck freeplay measurement.
5.
Test drive car to ensure proper operation of speed control system.
