Prelude L4-2.3L DOHC (1992)
-
Do not disconnect the P/S pipe and hose.
-
After installing, adjust the tension of the P/S belt.

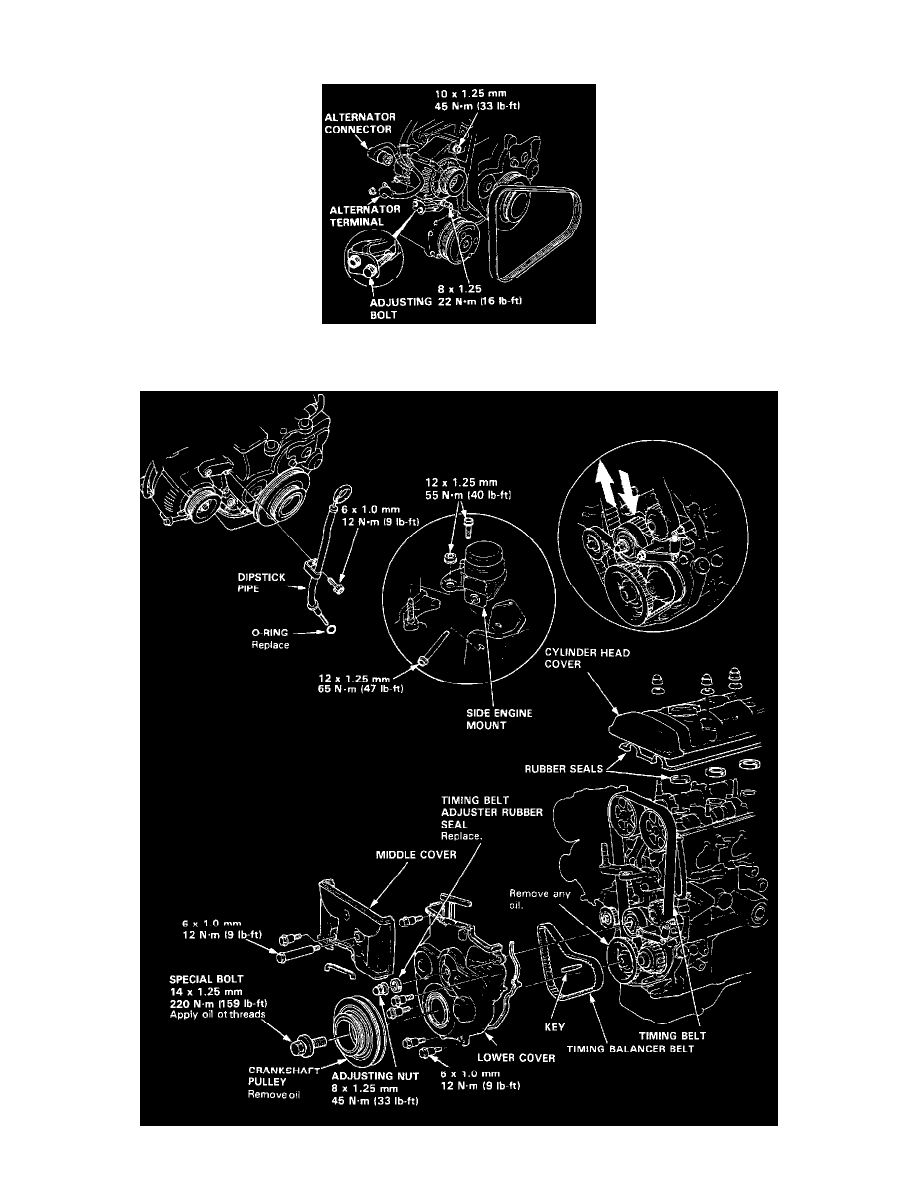

4. Disconnect the alternator terminal and the connector, then remove the engine wire harness from the cylinder head cover.
5. Loosen the alternator mounting bolt, nut and the adjusting nut, then remove the alternator belt.
