Blower Motor: Locations
- Make
- Hummer
- Model
- H3
- Engine
- L5-3.7L
- Year
- 2007
- Section
- Blower Motor › Locations
Heating and Air ConditioningLocations · page 1 of 3
Blower Motor: Locations
HVAC Component Views

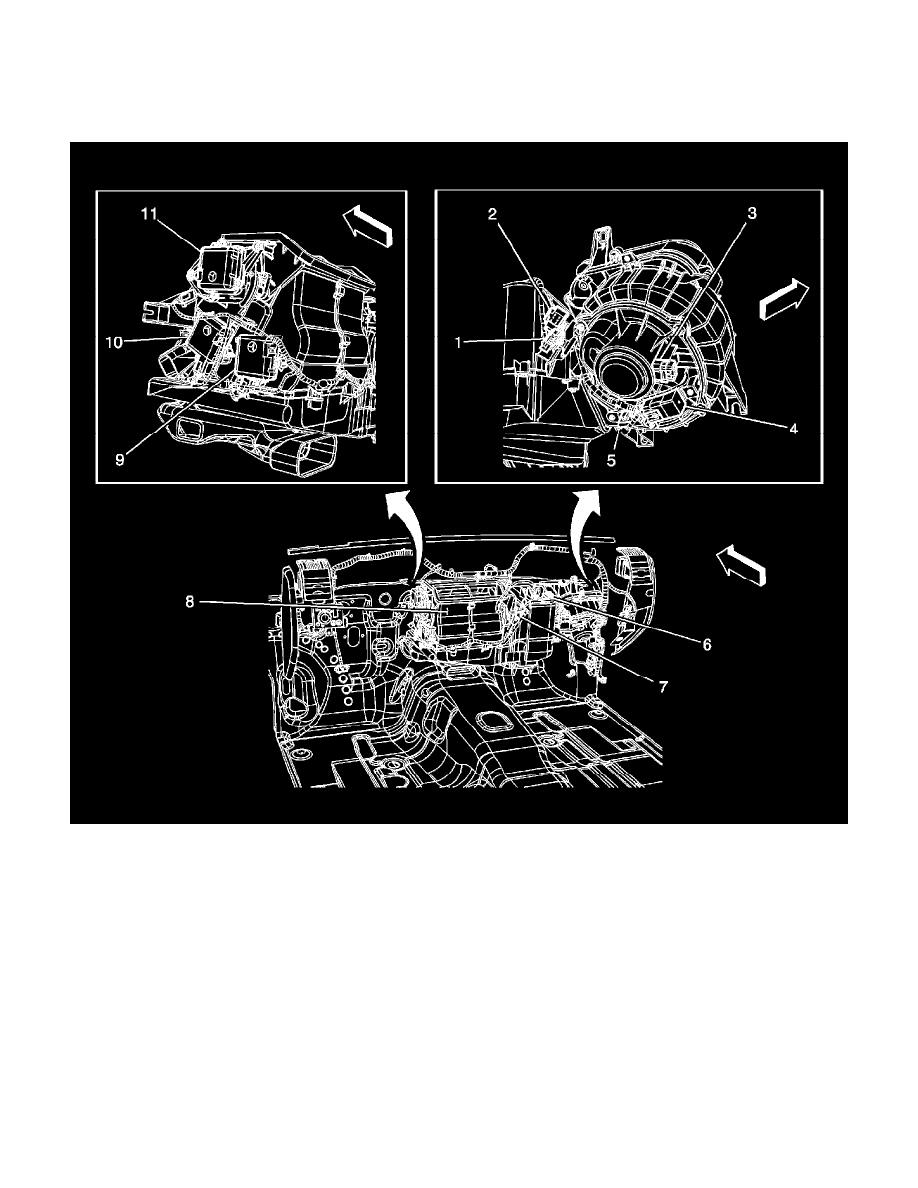

HVAC Module Components
1 - C205 HVAC Harness to I/P Harness
2 - C203 Blower Motor Resistor Harness to I/P Harness
3 - Blower Motor
4 - High Speed Blower Motor Relay
5 - Blower Motor Resistor Assembly
6 - Recirculation Actuator
7 - Evaporator Temperature Sensor
8 - HVAC Module
9 - Air Temperature Actuator - Right
10 - Air Temperature Actuator - Left
11 - Mode Actuator
