Ignition Coil|Diagrams|Page 8959 > < Procedures|Page 8955

H3 L5-3.7L (2007)

Page 1
background image

Ignition Coil: Diagrams

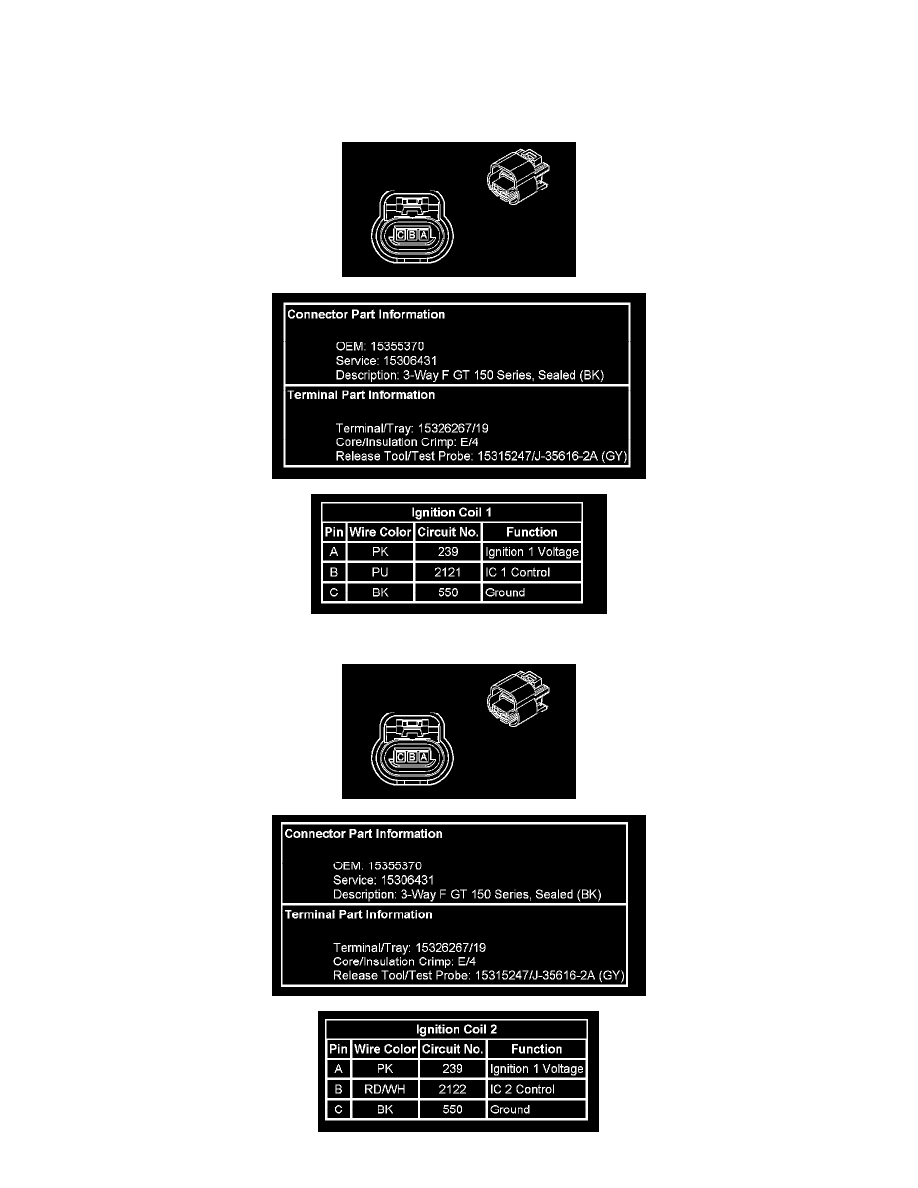

Engine Controls Connector End Views

Ignition Coil 1

Ignition Coil 2

Ignition Coil|Diagrams|Page 8959 > < Procedures|Page 8955
