Blower Motor: Locations

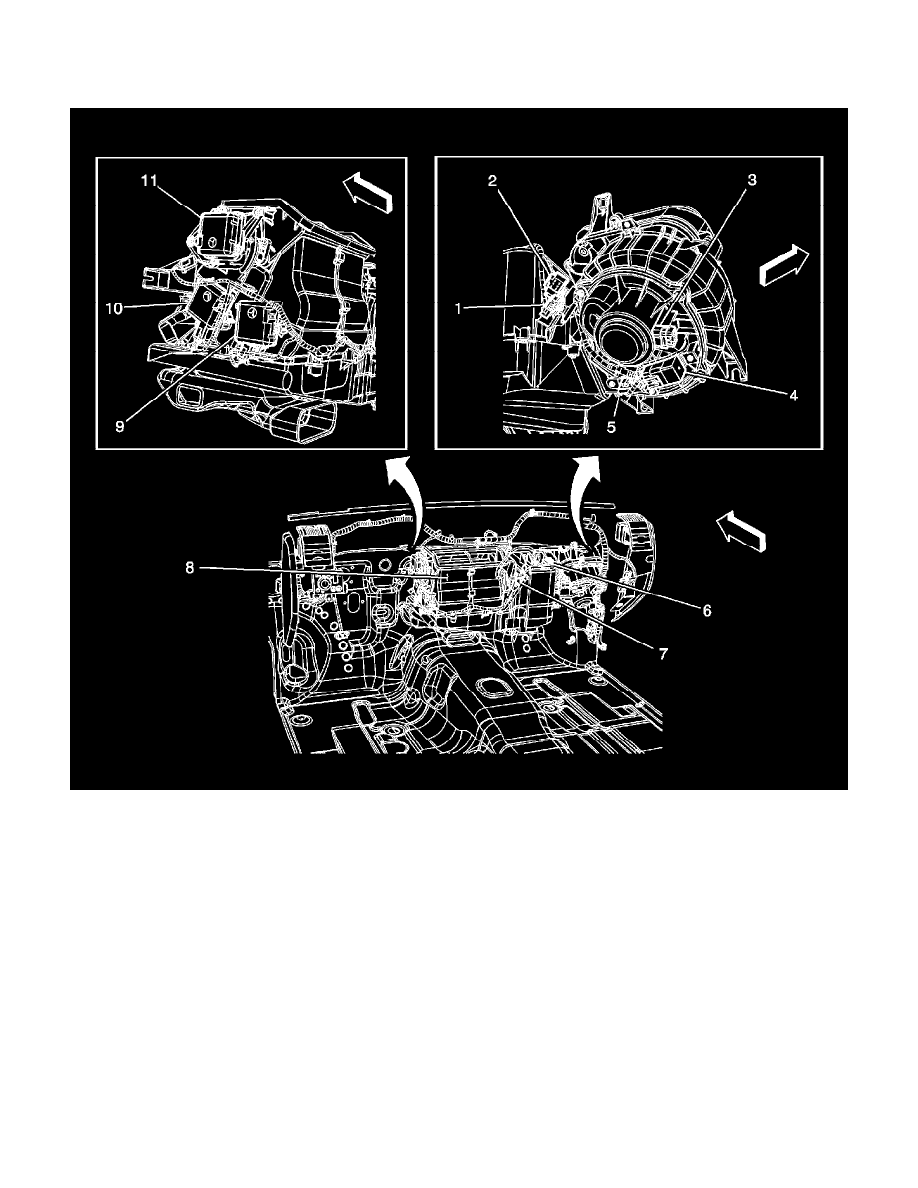

Behind the I/P Components - 2 of 2
1 - X205
2 - X203
3 - Blower Motor
4 - Blower Motor High Speed Relay
5 - Blower Motor Resistor Assembly
6 - Recirculation Actuator
7 - Evaporator Temperature Sensor
8 - HVAC Control Module
9 - Air Temperature Actuator - Right
10 - Air Temperature Actuator - Left
11 - Mode Actuator
