Brake Light Switch: Locations

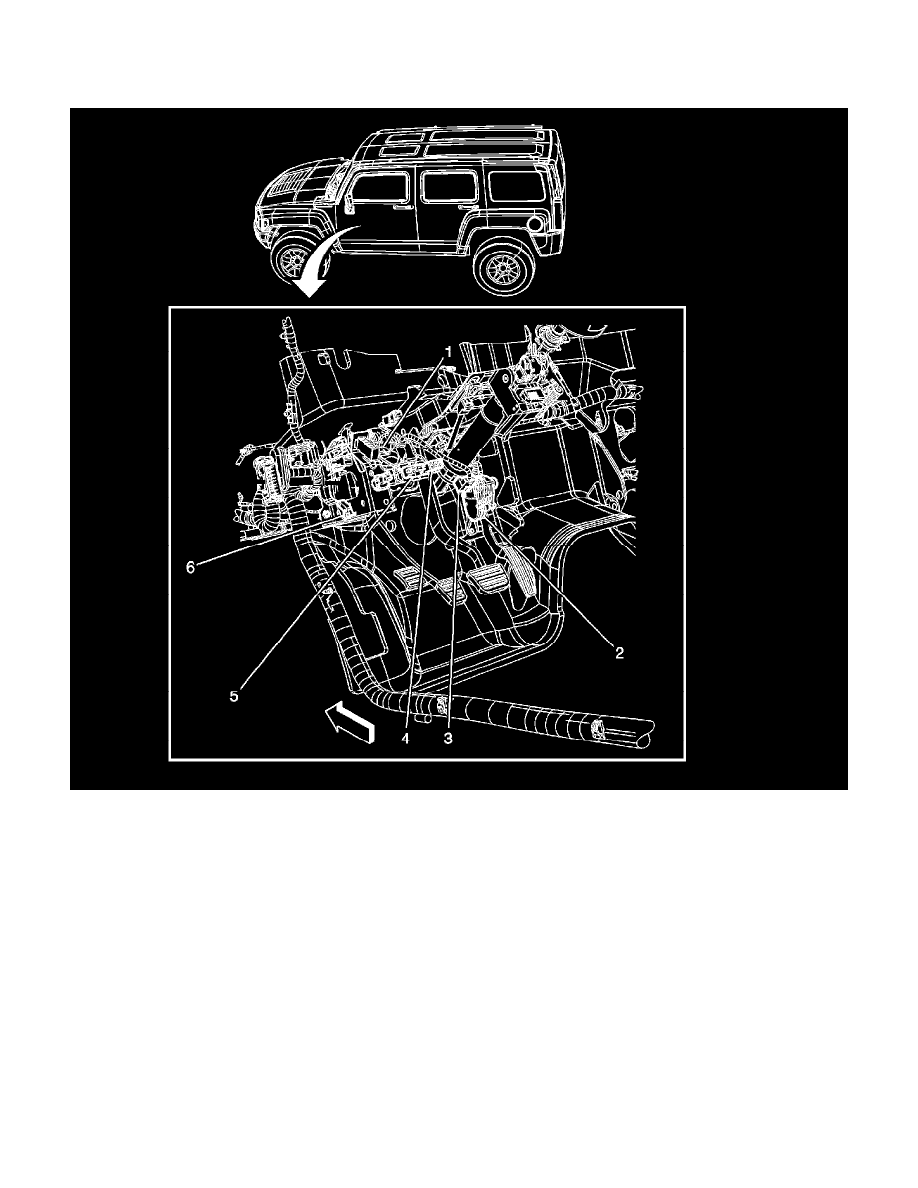

Under the Left Side of the I/P Components
1 - Clutch Pedal Position (CPP) Sensor (MA5)
2 - Accelerator Pedal Position (APP) Sensor
3 - Steering Wheel Position Sensor
4 - Cruise Control Release Switch
5 - Stop Lamp Switch
6 - Park Brake Switch
