Sonata L4-2.0L (1992)

Page 6
background image

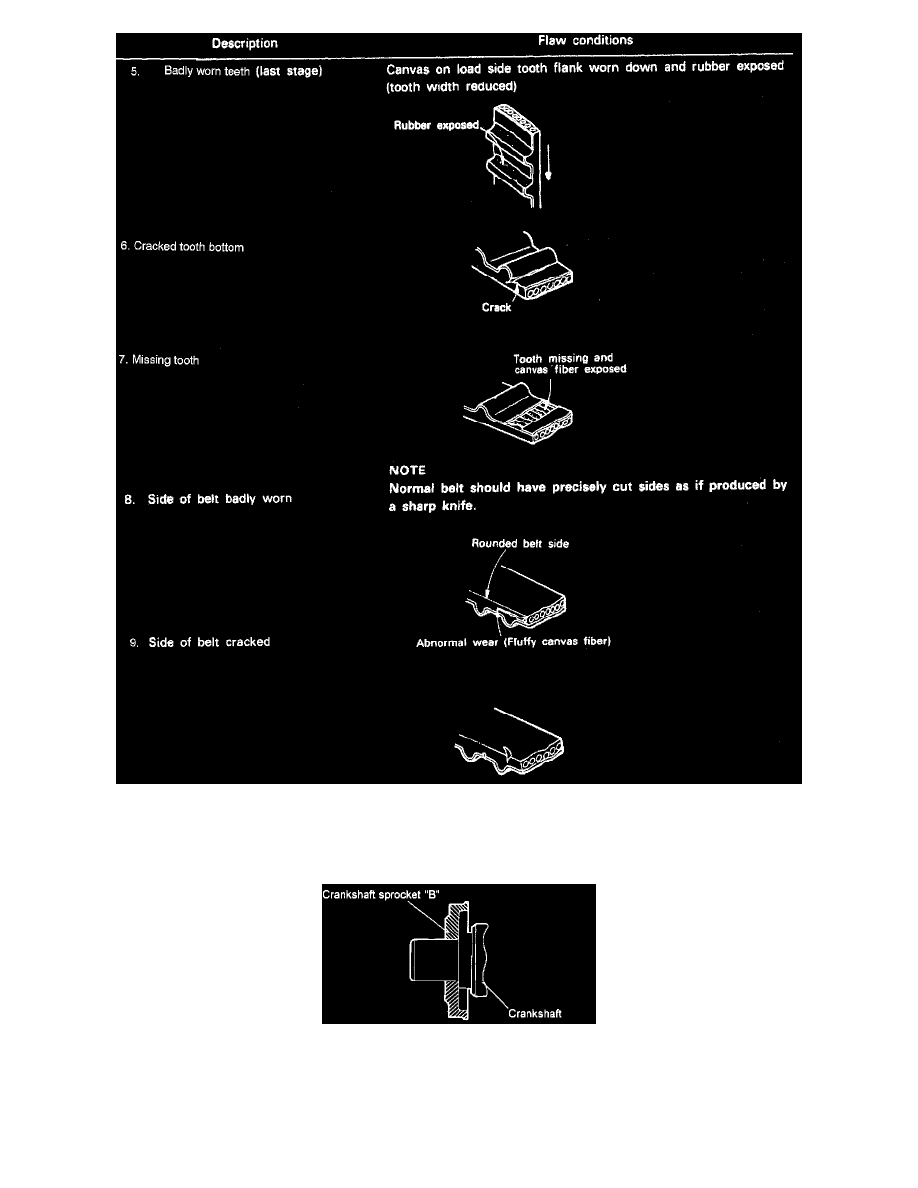

2. When the engine is overhauled or belt tension adjusted, check the belt in detail. If flaws are evident, as shown in images, replace the belt with a

new one.

INSTALLATION

1. Install crankshaft sprocket "B" into crankshaft.

CAUTION:

-

Pay special attention to the direction of the flange. If it is installed in the wrong direction, a broken belt could result.
