Sonata L4-2.0L (1992)

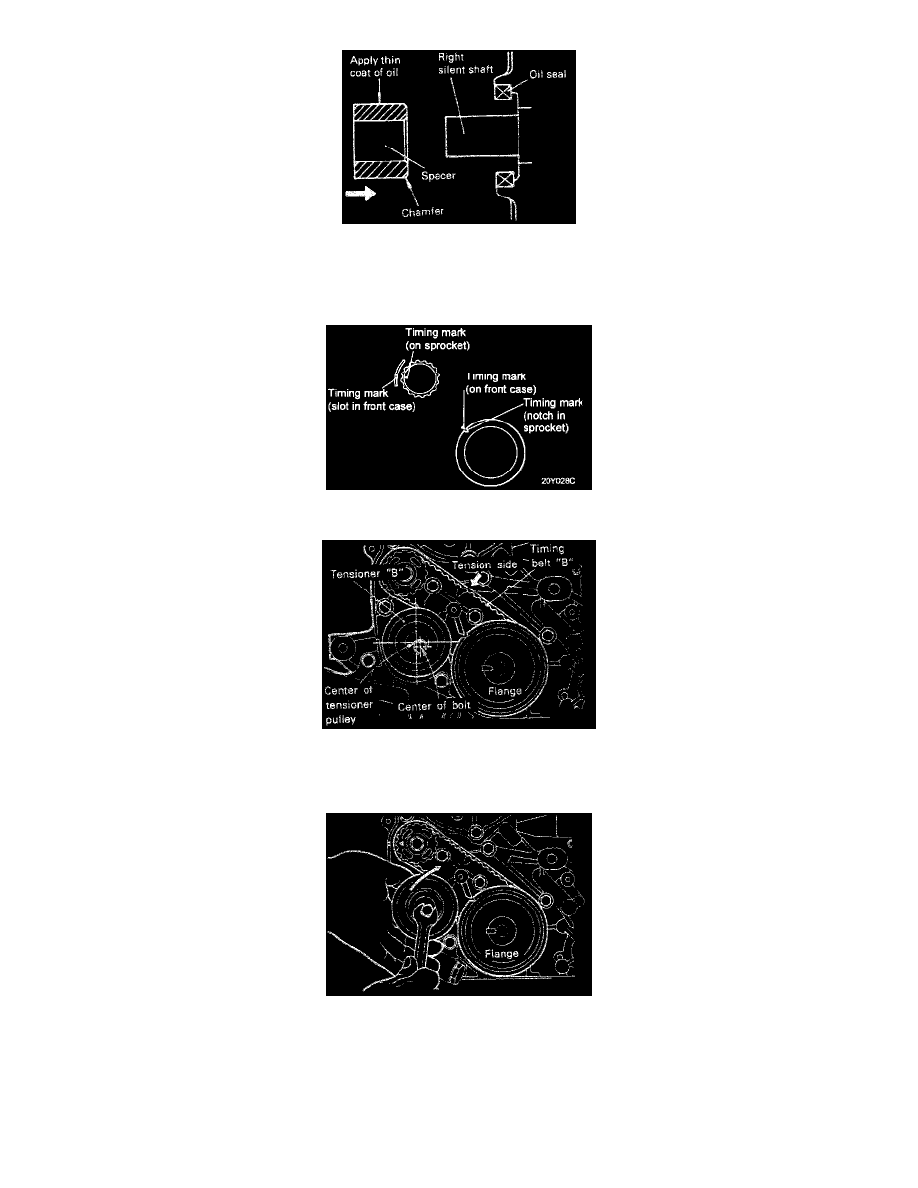

2. Lightly apply engine oil to the outer surface of spacer, and then install spacer to the right counter balance shaft. Be sure to install in the direction as
shown in image.
3. Install counter balance shaft sprocket onto right counter balance shaft, and then tighten flange bolt finger tight.
4. Align timing mark on each sprocket with corresponding timing mark on the front case.
5. When timing belt "B" is installed, make certain that tension side has no slack. Install tensioner "B" with center of pulley located on the left side of
mounting bolt and with pulley flange directed toward front of engine. Align timing mark on the right counter balance shaft sprocket with the timing
mark on the front case.
6. Lift tensioner "B" to tighten timing belt "B" so that its tension side will be pulled tight. In this condition, tighten bolt to secure tensioner "B."
When bolt is tightened, use care to prevent shaft from turning together. If shaft is turned together, belt will be overtightened.
