Sonata L4-2.4L (1990)

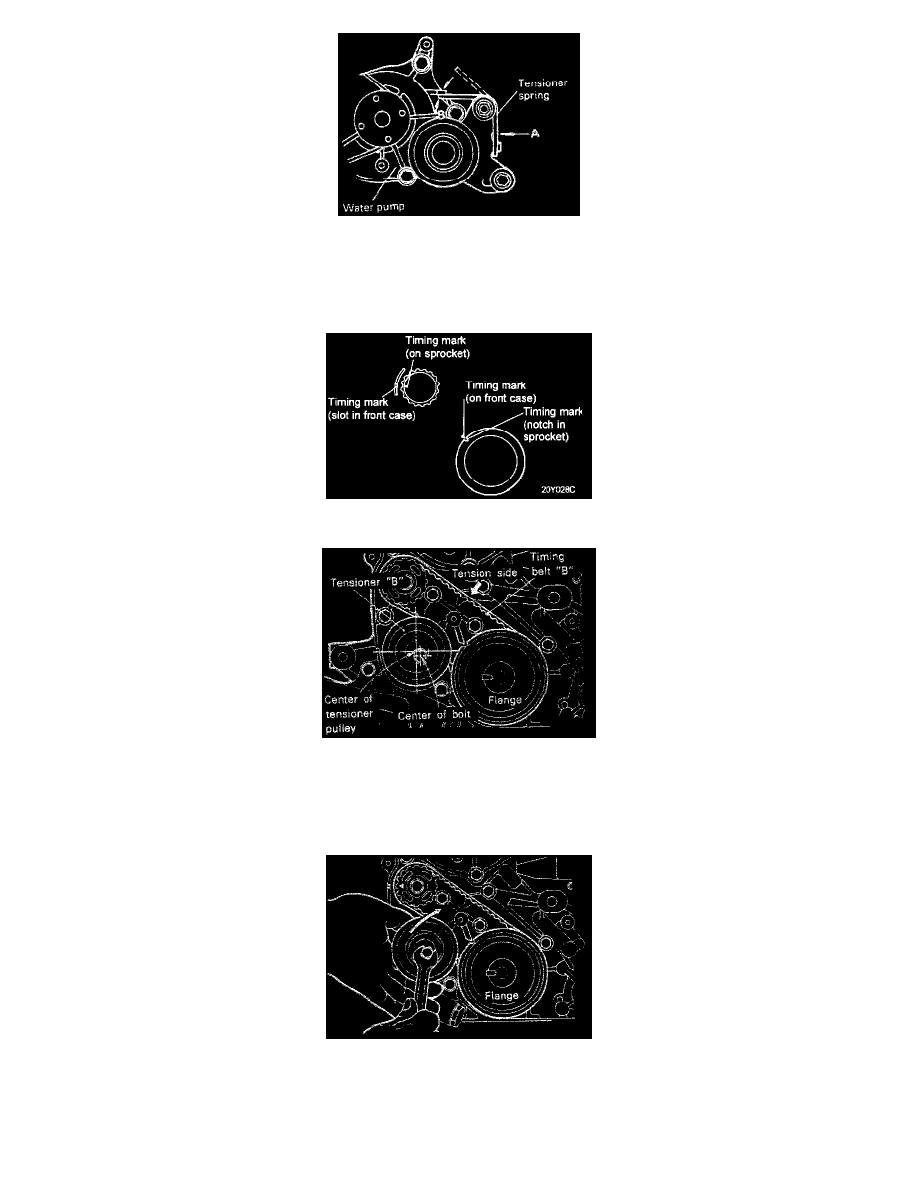

10. Install end "A" of spring to predetermined position of tensioner bracket.
11. Install end "B" of spring to predetermined position of water pump.
12. Install the timing belt and adjust the belt tension.
(1) Align timing mark on each sprocket with corresponding timing mark on the front case.
(2) When timing belt "B" is installed make certain that tension side has no slack.
(3) Install tensioner "B" with center of pulley located on the left side of mounting bolt and with pulley flange directed toward front of engine.
(4) Align timing mark on the right counter balance shaft sprocket with the timing mark on the front case.
(5) Lift tensioner "B" to tighten timing belt "B" so that its tension side will be pulled tight. In this condition, tighten bolt to secure tensioner "B."
When bolt is tightened use care to prevent shaft from turning together. If shaft is turned together belt will be overtightened.
(6) Check to ensure that timing marks are in alignment.
