Towing Information: Service and Repair

Towing

If the vehicle needs to be towed, call a professional towing service. Never tow vehicle with just a rope or chain. It is very dangerous.
If the vehicle cannot be transported by flat-bed, if should be towed with the front wheels off the ground. If due to damage, the vehicle must be toward
with the front wheels on the ground, do not following :
Manual Transmission

-

Release the parking brake.

-

Shift the transmission to neutral

Automatic Transmission

-

Release the parking brake.

-

Start the engine.

-

Shift to [D] position, then [N] position.

-

Turn off the engine.

CAUTION:
-

Improper towing preparation will damage the transmission. Follow the above procedure exactly. If you cannot shift the transmission or start
the engine(automatic transmission), your vehicle must be transported on a flat bed.

-

It is the best to tow vehicle no farther than 19miles (30km), and keep the speed below 30mph (50km/h).

-

Trying to lift or tow your vehicle by the bumpers will cause serious damage. The bumpers are not designed to support the vehicle's weight.

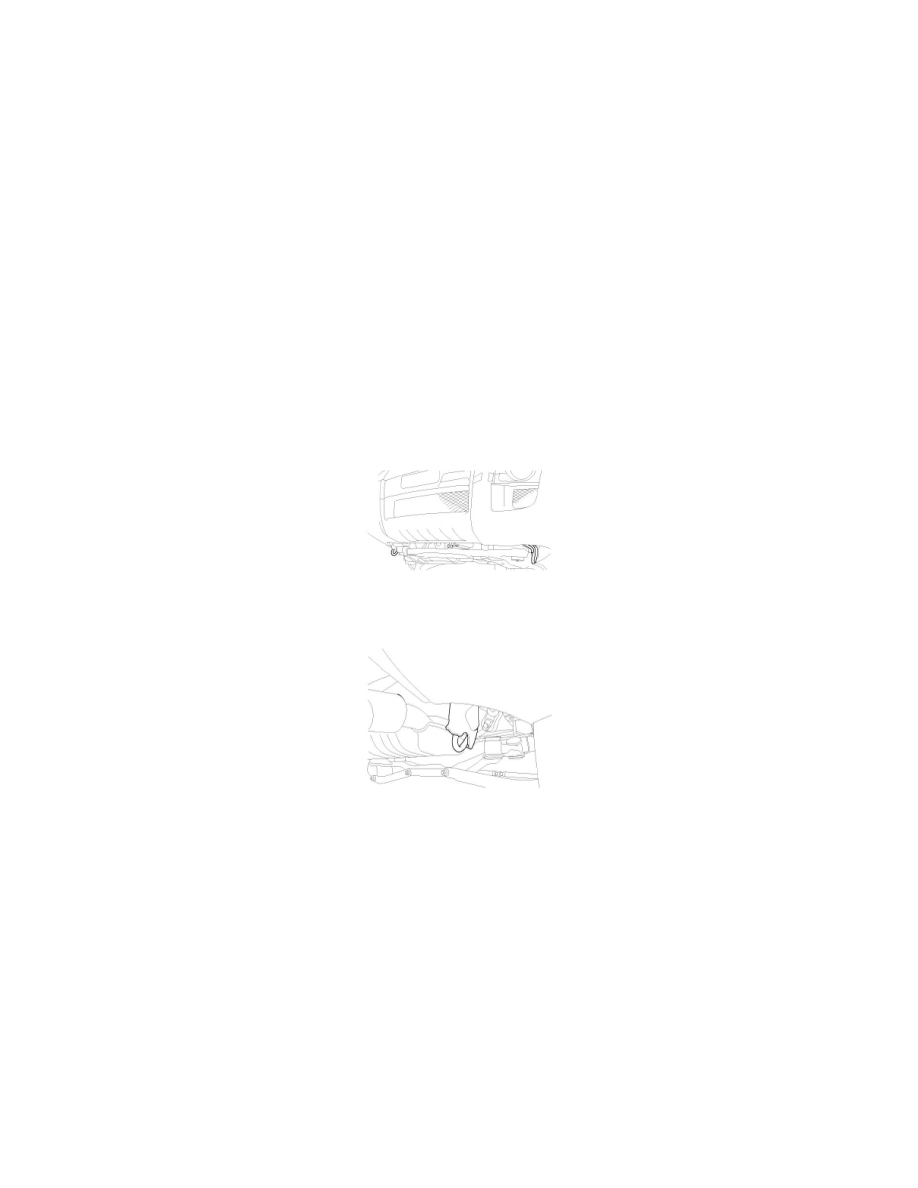

Front :

Rear :
