Hyundai Veracruz AWD V6-3.8L (2007)03 · Maintenance
03 · Maintenance

Towing Information: Service and Repair

Make
Hyundai
Model
Veracruz AWD
Engine
V6-3.8L
Year
2007
Section
Towing Information › Service and Repair
MaintenanceService and Repair · page 1 of 2
background image

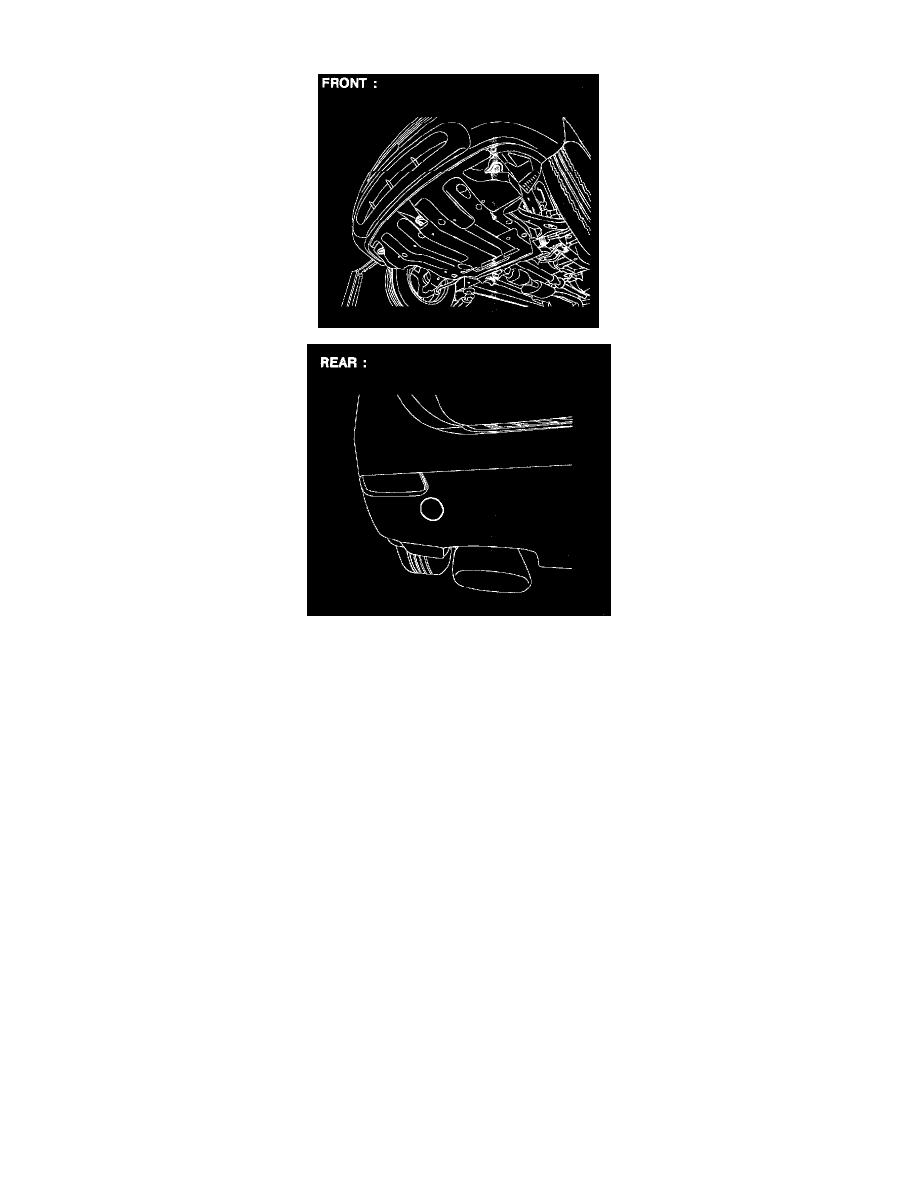

Towing Information: Service and Repair

TOWING

If the vehicle needs to be towed, call a professional towing service. Never tow vehicle with just a rope or chain. It is very dangerous.

EMERGENCY TOWING

There are three popular methods of towing a vehicle.

Flat - bed Equipment :- The operator loads the vehicle on the back of truck. This is best way of transporting the vehicle.

Wheel Lift Equipment :- The tow truck uses two pivoting arms that go under the tires (front or rear) and lift them off the ground. The other two wheels
remain on the ground.

Sling type Equipment: - The tow truck uses metal cables with hooks on the ends. These hooks go around parts of the frame or suspension, and the
cables lift that end of the vehicle off the ground. The vehicle's suspension and body can be seriously damaged if this method of towing is attempted.

If the vehicle cannot be transported by flat-bed, if should be towed with the front wheels off the ground. If due to damage, the vehicle must be toward
with the front wheels on the ground, do the following.

Manual Transmission

-

Release the parking brake.

-

Shift the transmission to neutral.

Automatic Transmission

-

Release the parking brake.

-

Start the engine.

-

Shift to [D] position, then [N] position.

-

Turn off the engine.

CAUTION:
