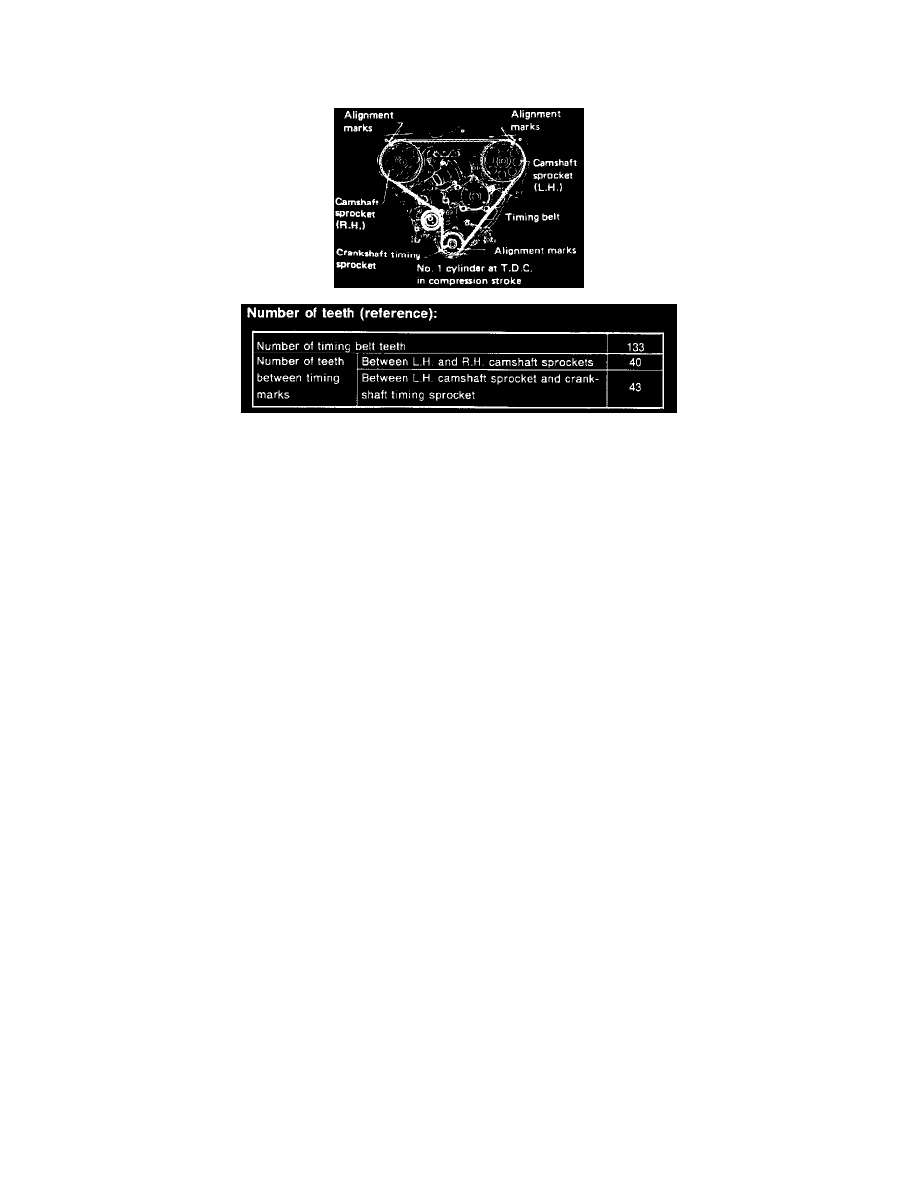

Timing Component Alignment Marks: Locations
Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components.
For complete Timing Belt Removal and Installation information:
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
