Axiom 2WD V6-3.5L (2002)
Windshield: Service and Repair
Windshield

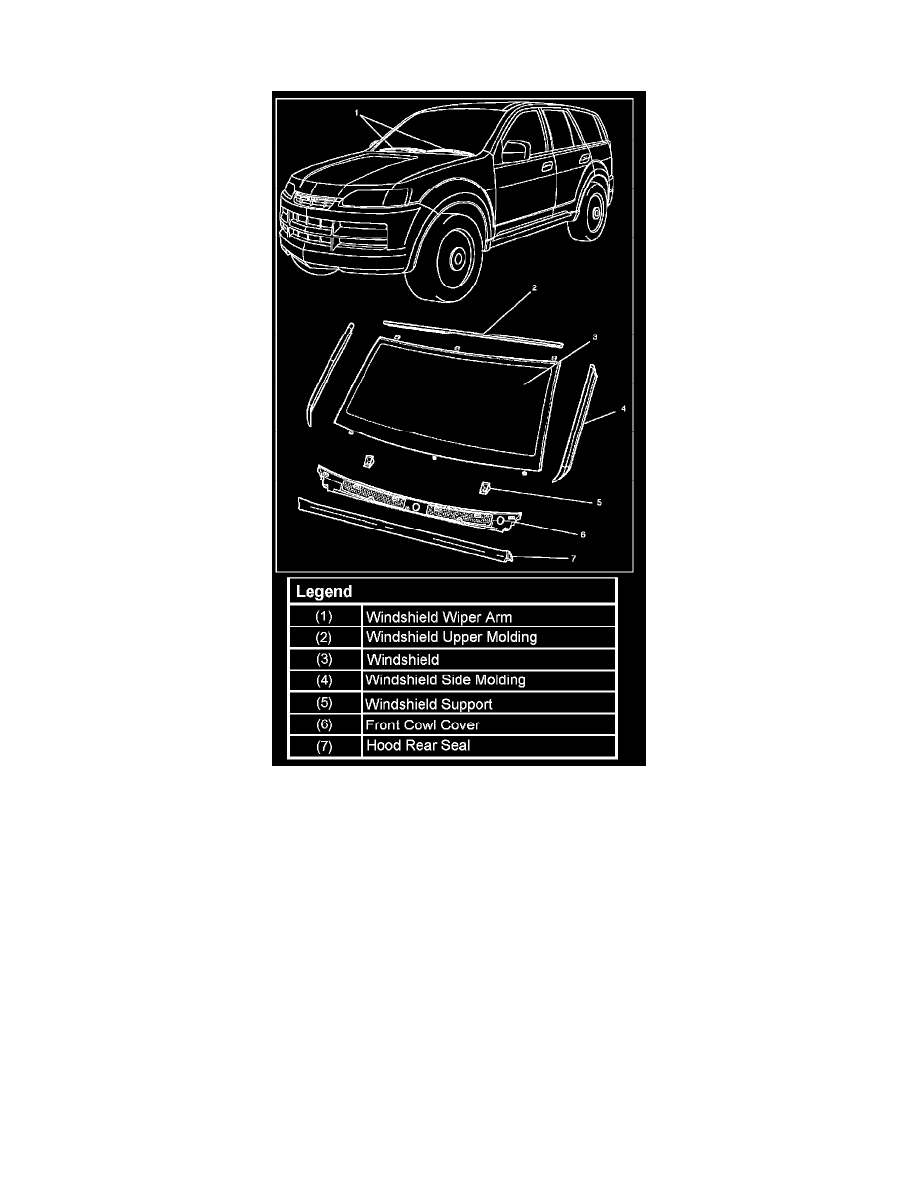

Parts Location
Removal
1. Disconnect the battery ground cable.
2. Remove the front pillar trim cover.
-
Turn up the finisher and pry the trim cover clips free from the body panel.
3. Remove the sunvisors and sunvisor holders.
4. Remove the interior mirror.
5. Remove the windshield wiper arm.
6. Remove the windshield side molding.
-
Pull the molding out from drip rail.
7. Remove the front cowl cover.
8. Remove the windshield support.
9. Remove the upper moulding.
10. Remove the windshield.
-
Use a knife to cut through part of the adhesive caulking material.
-
Secure one end of a piece of steel piano wire (0.02 inches in diameter) to a piece of wood that can serve as a handle.
-
Use a pair of needle nose pliers to insert the other end of the piano wire through the adhesive caulking material at the edge of the windshield
glass.
