With Air Conditioning (Drive Belt)
- Make
- Isuzu
- Model
- Hombre
- Engine
- L4-2.2L CPC
- Year
- 1996
- Section
- Drive Belt › Diagrams › With Air Conditioning
MaintenanceWith Air Conditioning · page 1 of 2
Drive Belt: Diagrams
With Air Conditioning

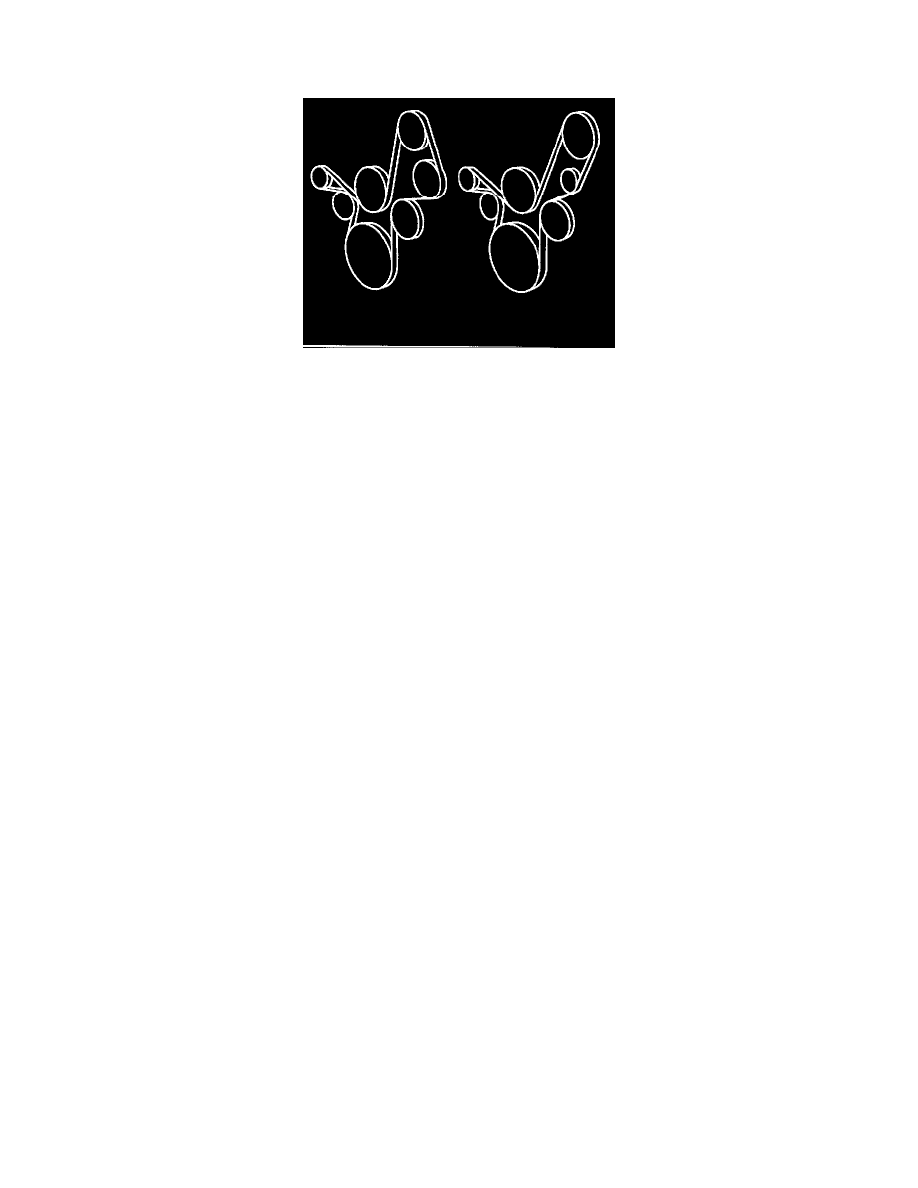

Drive Belt Routing with A/C, P/S on Left and Manual Steering on Right.
