i-370 2WD L5-3.7L (2008)

  • Cruise Control
  • Clutch Switch, Cruise Control
  • Component Information
  • Diagrams

Page 1
background image

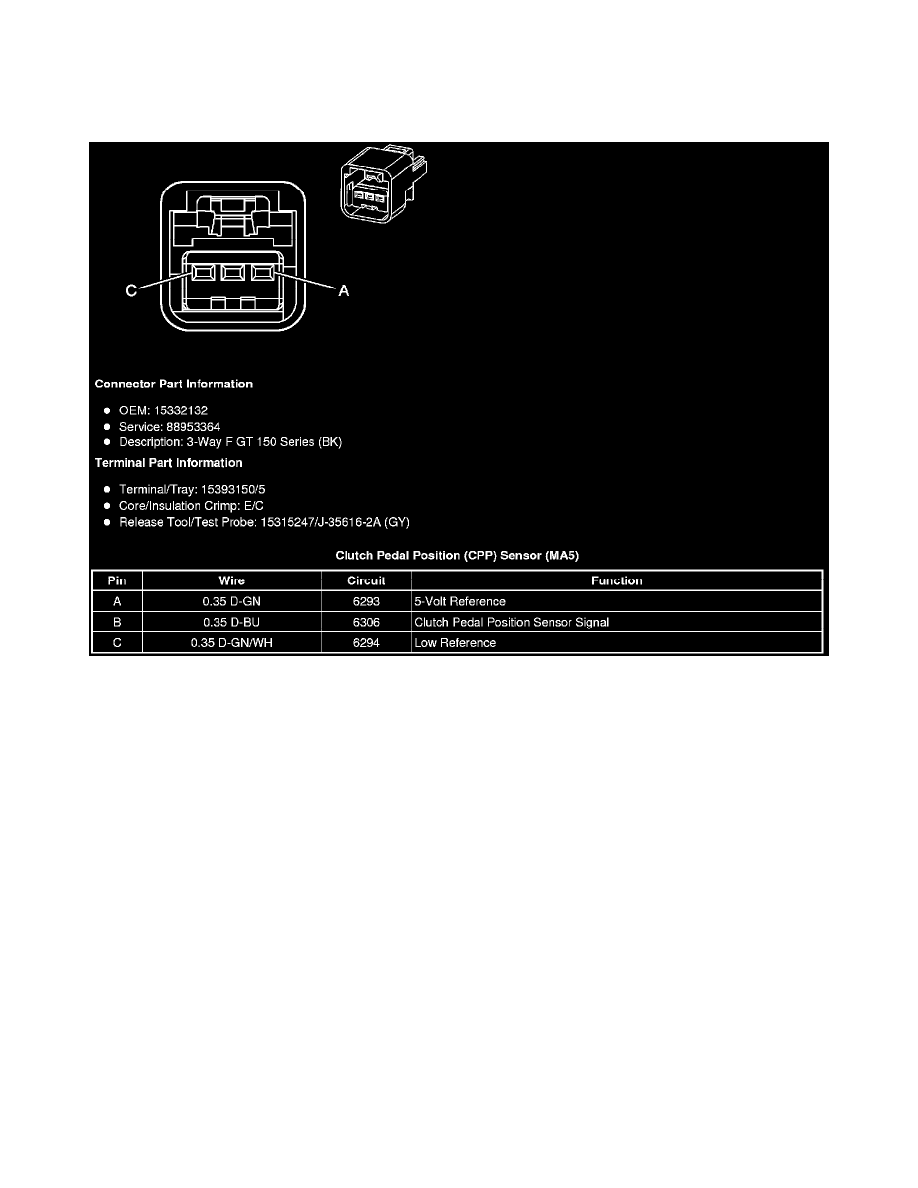

Clutch Switch: Diagrams

Component Connector End Views

Clutch Pedal Position (CPP) Sensor (MA5)
