Dimmer Switch: Locations

Make

Isuzu

Model

i-370 2WD

Engine

L5-3.7L

Year

2008

Section

Dimmer Switch › Locations

Lighting and HornsLocations

Dimmer Switch: Locations

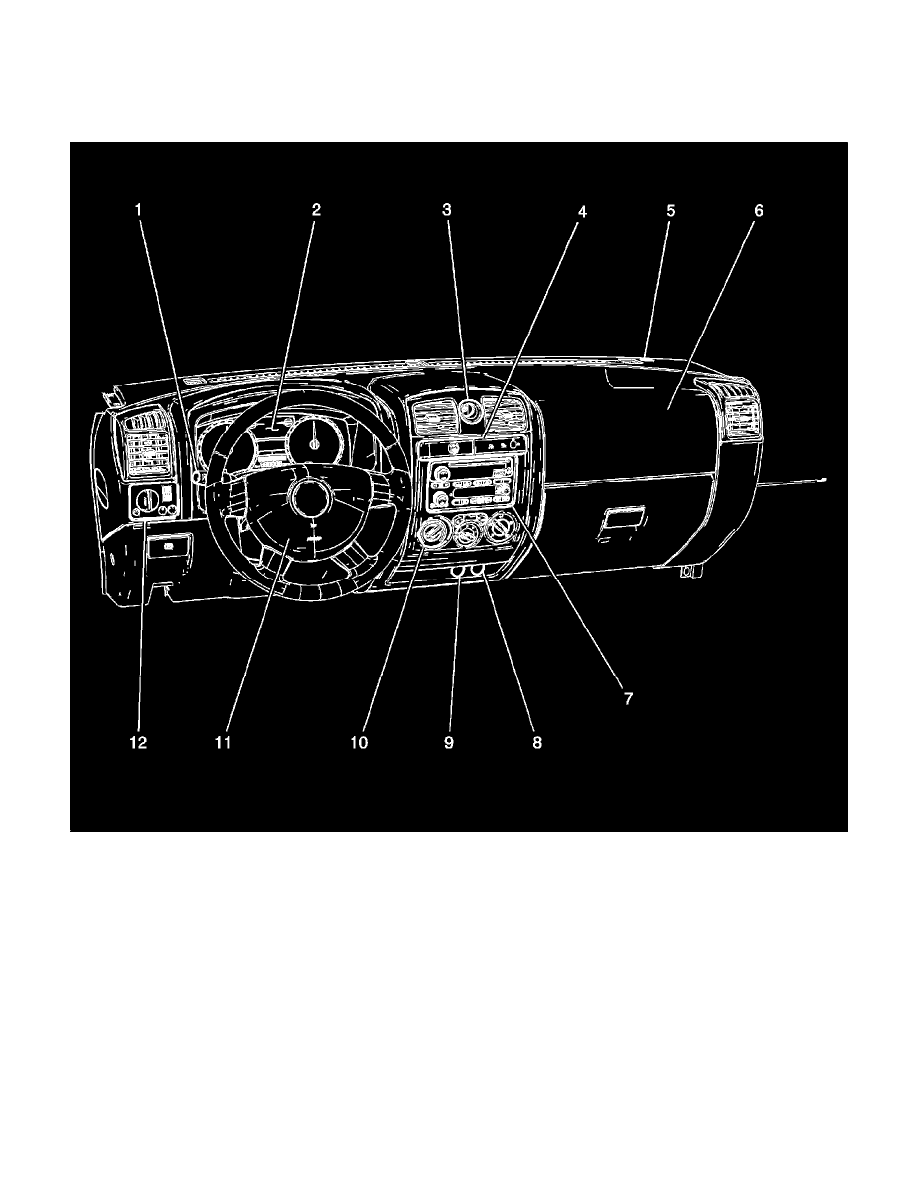

Instrument Panel/Center Console Component Views

Front of the I/P Components

1 - Turn Signal/Multifunction Switch
2 - Instrument Panel Cluster (IPC)
3 - Hazard Switch
4 - Accessory Switch
5 - Ambient Light Sensor
6 - Inflatable Restraint I/P Module
7 - Radio
8 - Auxiliary Power Outlet 2
9 - Auxiliary Power Outlet 1
10 - HVAC Control Module
11 - Inflatable Restraint Steering Wheel Module
12 - Headlamp and Panel Dimmer Switch
