Timing Component Alignment Marks: Locations

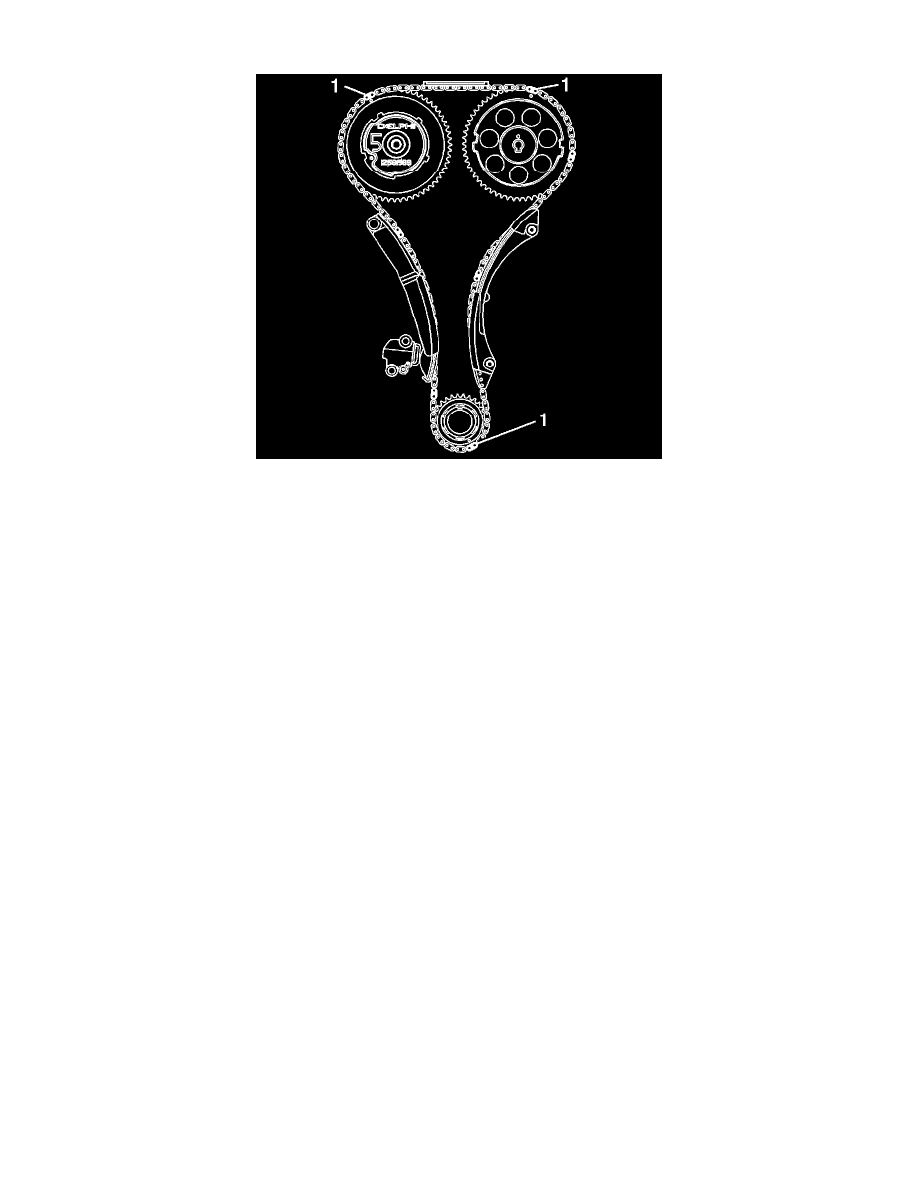

The dark links (1) on the chain should be aligned with marks on sprockets as shown.
