Rodeo 2WD V6-3.2L (2003)
Grille: Service and Repair
Radiator Grille

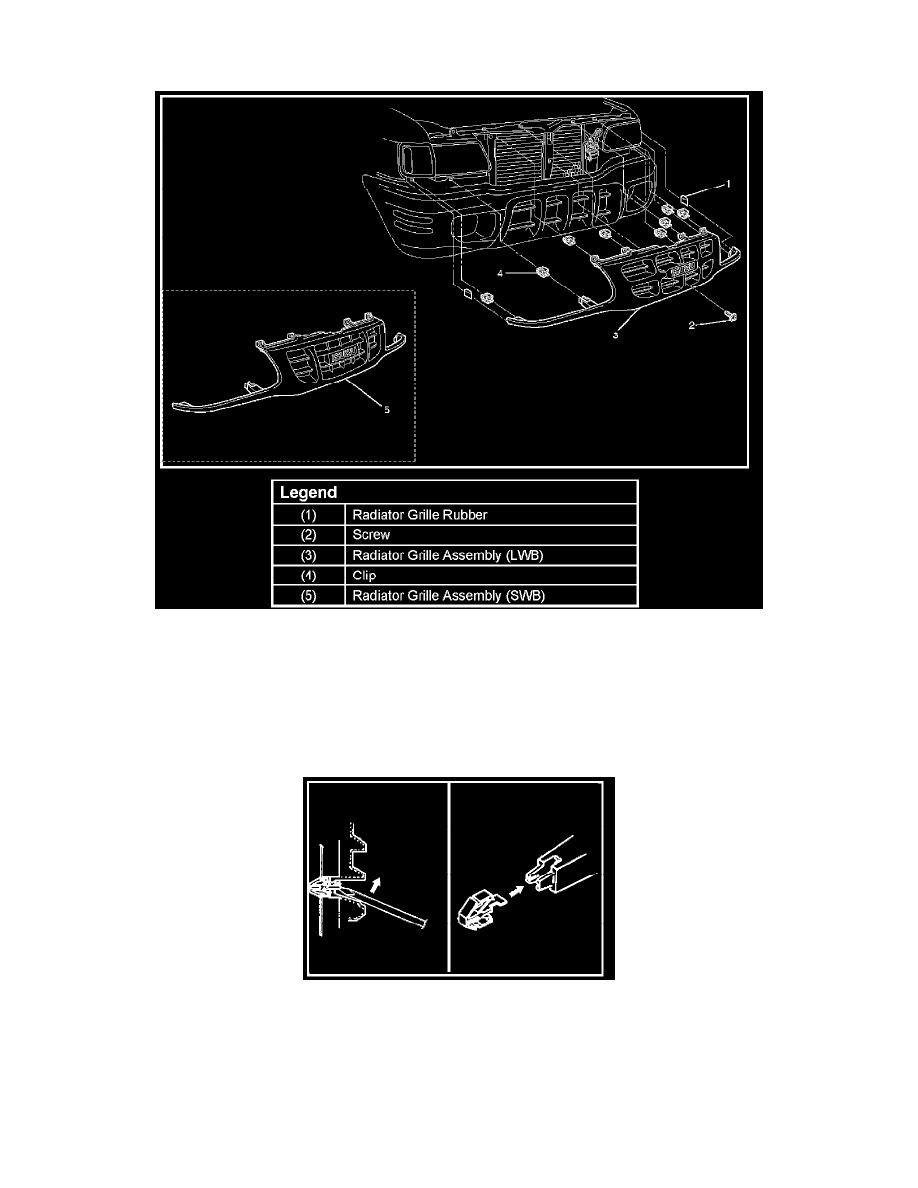

Parts Location
Removal
1. Open the hood.
2. Support the hood.
3. Remove radiator grille.
-
Raise the clips on the radiator grille and remove screw.
4. Pull out the radiator grille rubber from fender panel front lower side.
Installation
To install, follow the removal steps in the reverse order, noting the following points:
1. Install the radiator grille clips remaining on the body side in the radiator grille and then install the radiator grille on the body.
