Hose/Line HVAC: Diagrams
- Make
- Isuzu
- Model
- Rodeo 4WD
- Engine
- V6-3.2L
- Year
- 2004
- Section
- Hoses › Hose/Line HVAC › Diagrams
MaintenanceDiagrams · page 1 of 5

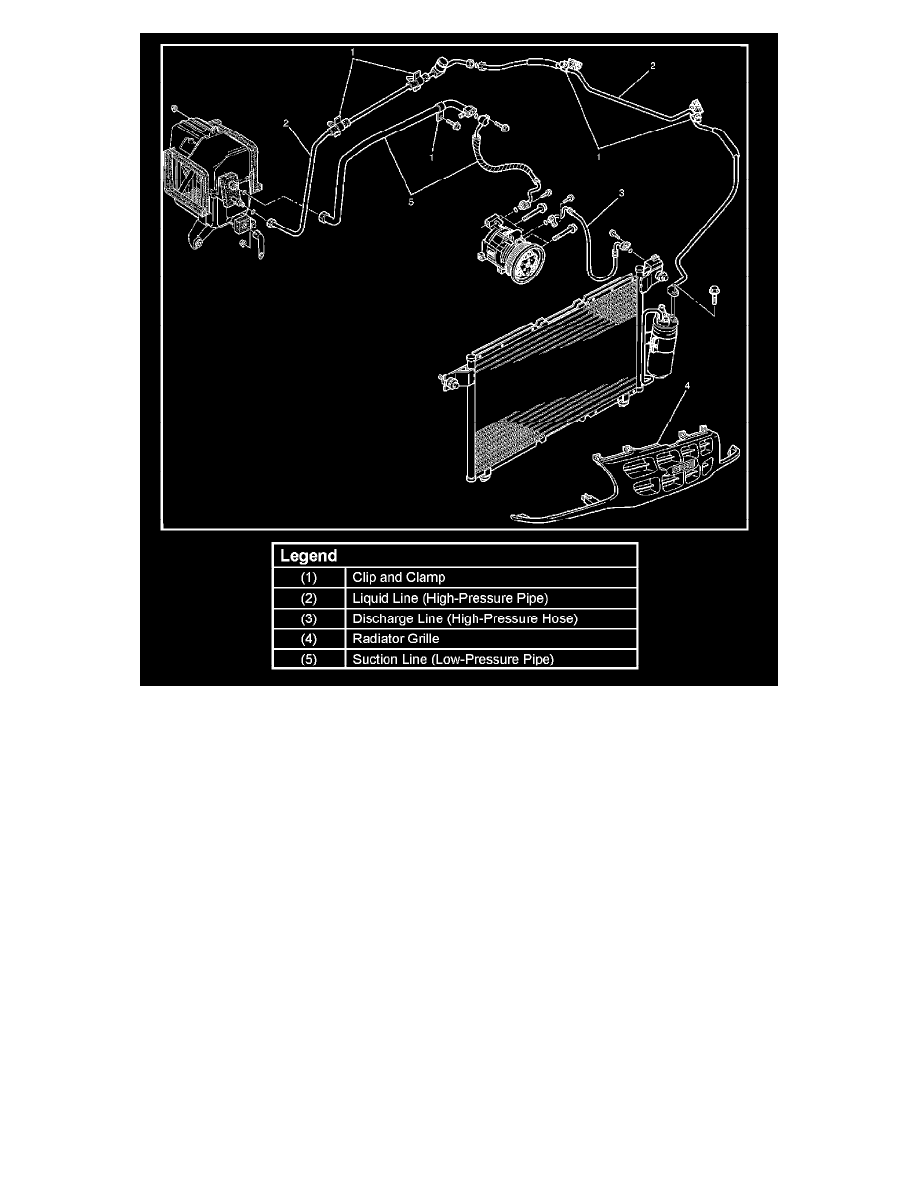

Refrigerant Line And Associated Parts
