Trooper S V6-3.5L (1998)

Page 1
background image

Flex Plate: Specifications

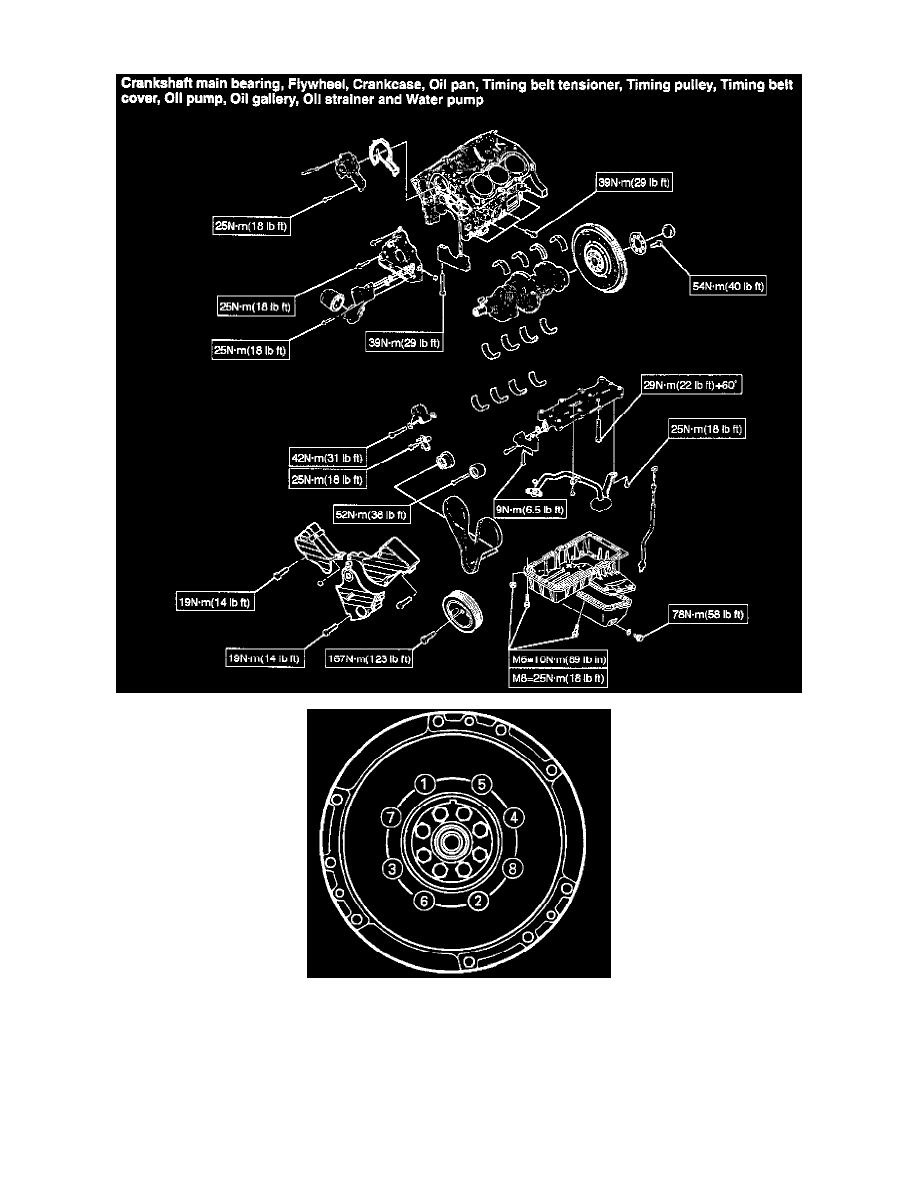

Holding the crankshaft stationary, tighten the flywheel bolts in the order shown.

Torque .....................................................................................................................................................................................................  54 Nm (40 ft. lbs.)

NOTE:  Do not reuse the bolts and do not apply oil or thread lock to the bolts.
