Isuzu Trooper S 2WD V6-3.5L (2001)03 · Maintenance
03 · Maintenance

Timing Belt: Specifications (page 8 of 8)

Make
Isuzu
Model
Trooper S 2WD
Engine
V6-3.5L
Year
2001
Section
Timing Belt
MaintenanceSpecifications · page 8 of 8
background image

6. Install power steering pump assembly and tighten to the specified torque.

Torque:
M5 bolt: 22 Nm (16 ft. lbs.)
M10 bolt: 46 Nm (34 ft. lbs.)

7. Install cooling fan assembly and tighten bolts/nuts to the specified torque.

Torque: 22 Nm (16 ft. lbs.) for fan pulley and fan bracket.
Torque: 10 Nm (88.5 inch lbs.) for fan and clutch assembly.

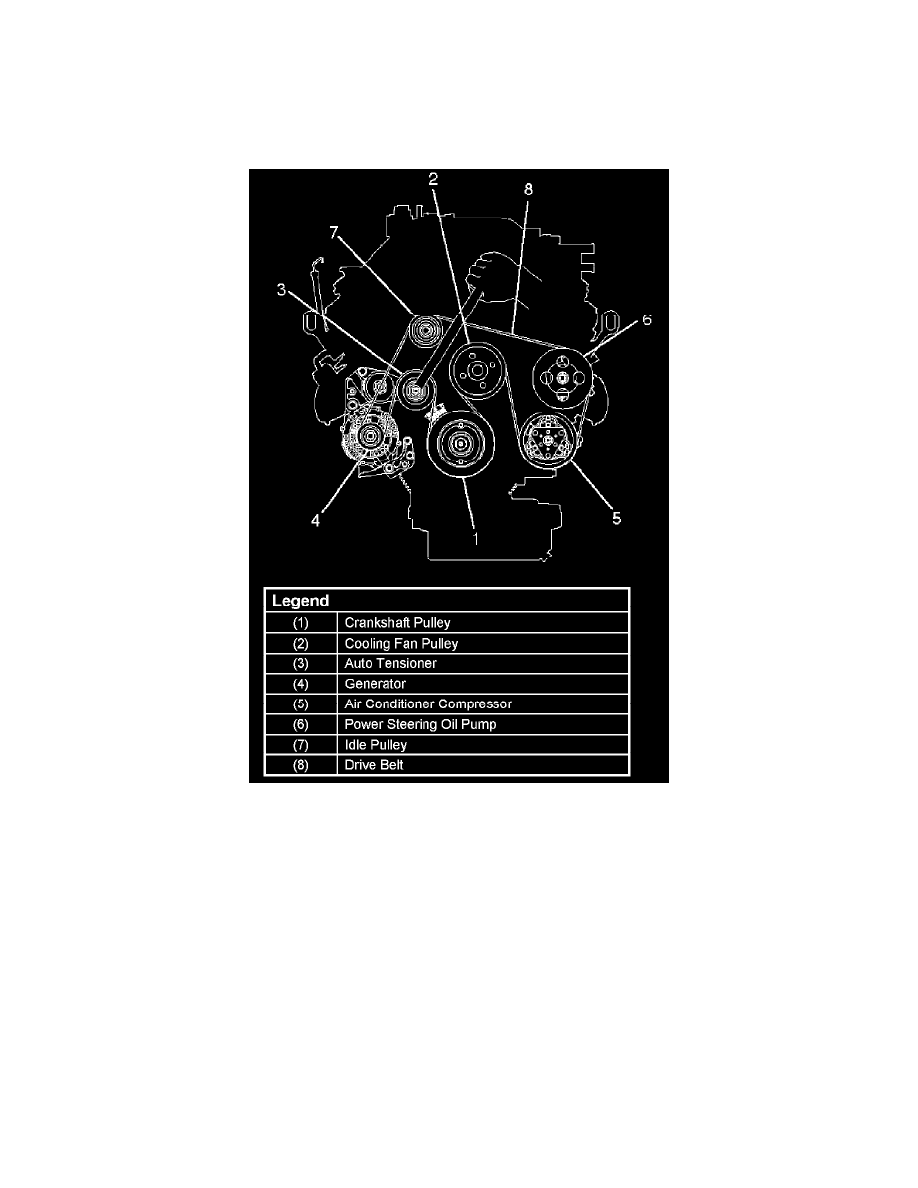

8. Move drive belt tensioner to loose side using wrench, then install drive belt to normal position.
9. Install radiator upper fan shroud.

10. Install air cleaner assembly.
