X-Type (X400) V6-3.0L (2002)

Page 2
background image

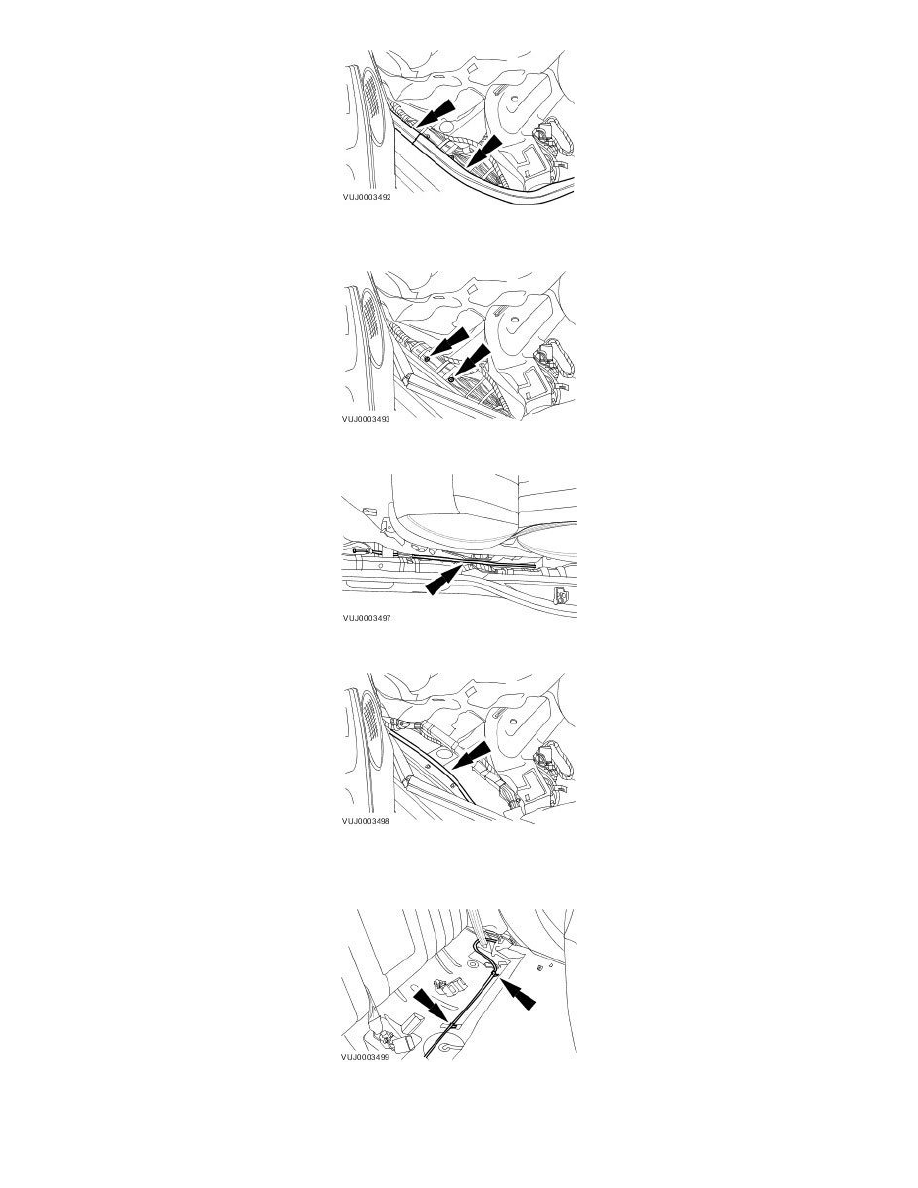

10. Reposition the wiring harness to one side.

-

Loosen the retaining screws.

11. Detach the fuel filler door release cable.

12. Detach the fuel filler door release cable.

Vehicles built up to VIN:J38978

13. Detach the fuel filler door release cable.

14. Detach the fuel filler door release cable.
