Fuel Door Release Cable|Service and Repair|Page 6733 > < Fuel Door Release Cable|Service and Repair|Page 6731
Page 3
background image

Vehicles built from VIN:J38979

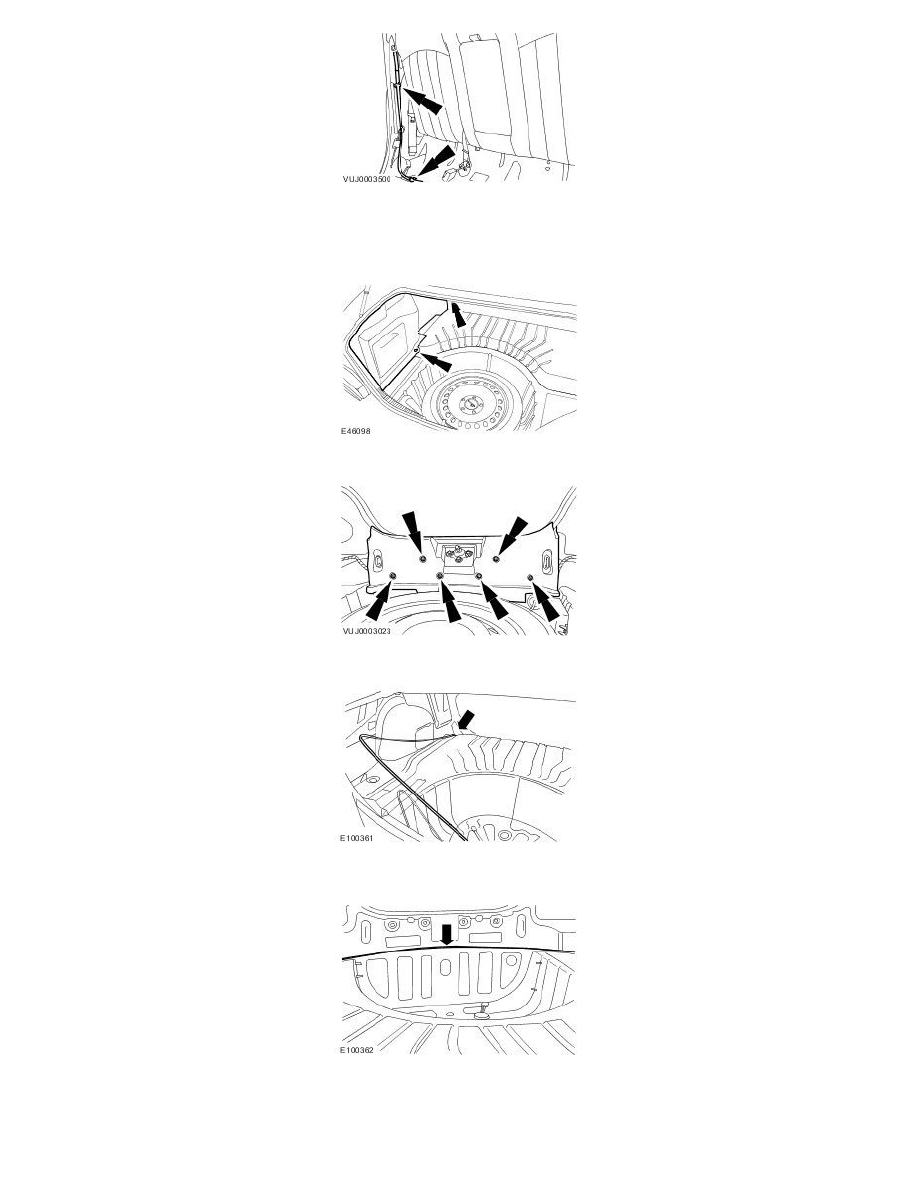

15. Remove the luggage compartment floor covering.
16. Detach and reposition the LH rear quarter trim panel.

17. Remove the rear panel.

18. Detach the fuel filler door release cable.

19. Detach the fuel filler door release cable.

All vehicles

20. Detach and reposition the RH rear quarter trim panel.
