X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1206010.png)

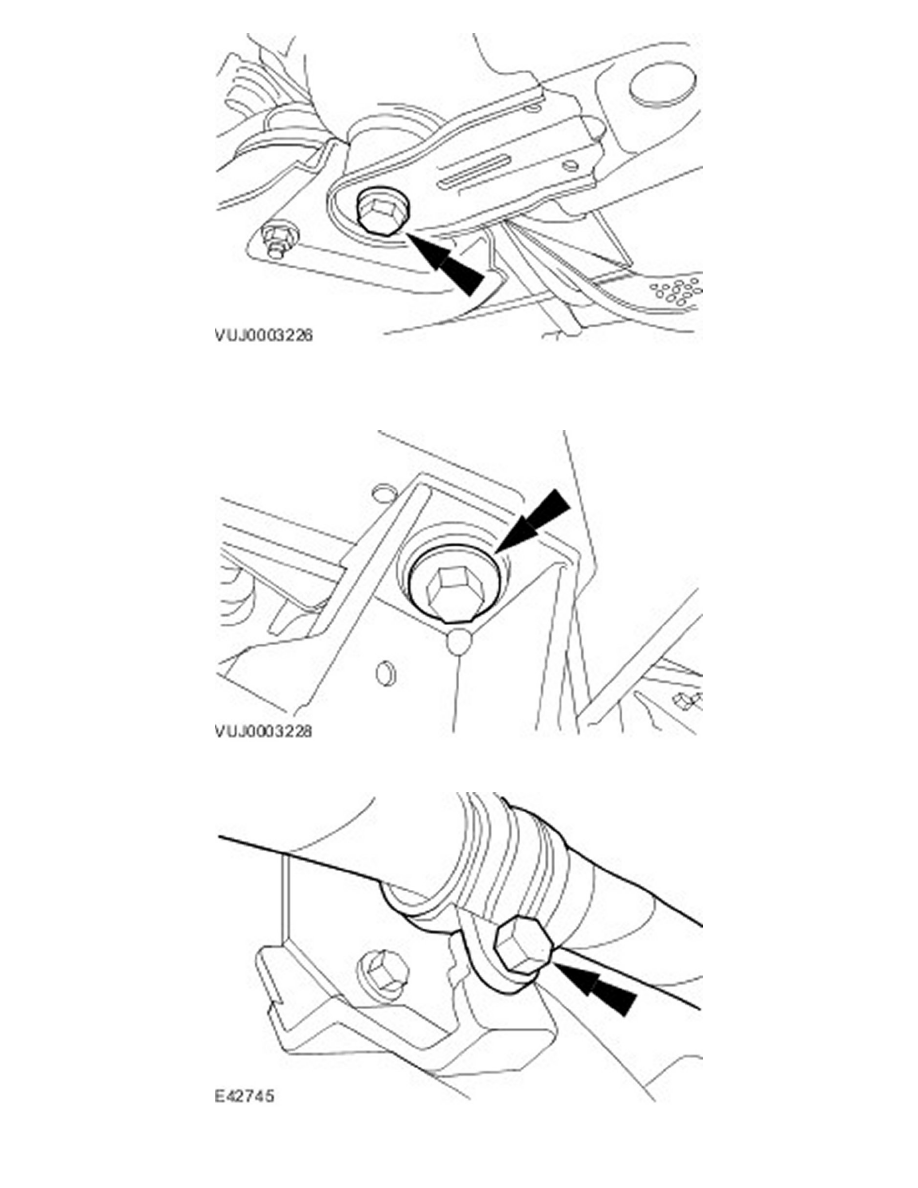

25. Remove the front subframe rear mount retaining bolts.
Note: Right-hand shown, left-hand similar.
26. Remove the front subframe front mount retaining bolts.
27. Detach the steering gear supply pipe from the steering gear heat shield mount bracket.
