X-Type (X400) V6-3.0L (2002)

Page 11
background image

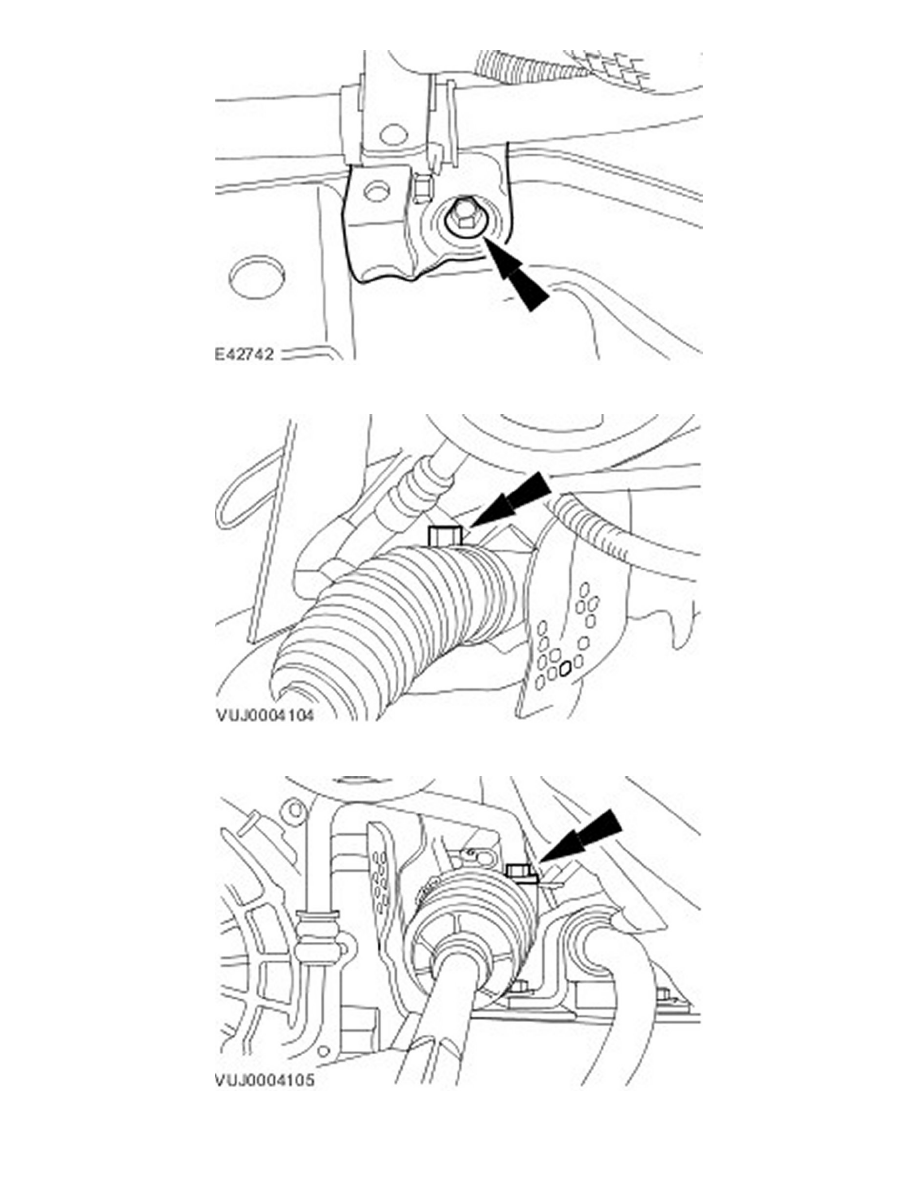

28. Detach the steering gear heat shield mount bracket.

29. Detach the right-hand side of the steering gear.

30. Detach the left-hand side of the steering gear.
