X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1207004.png)

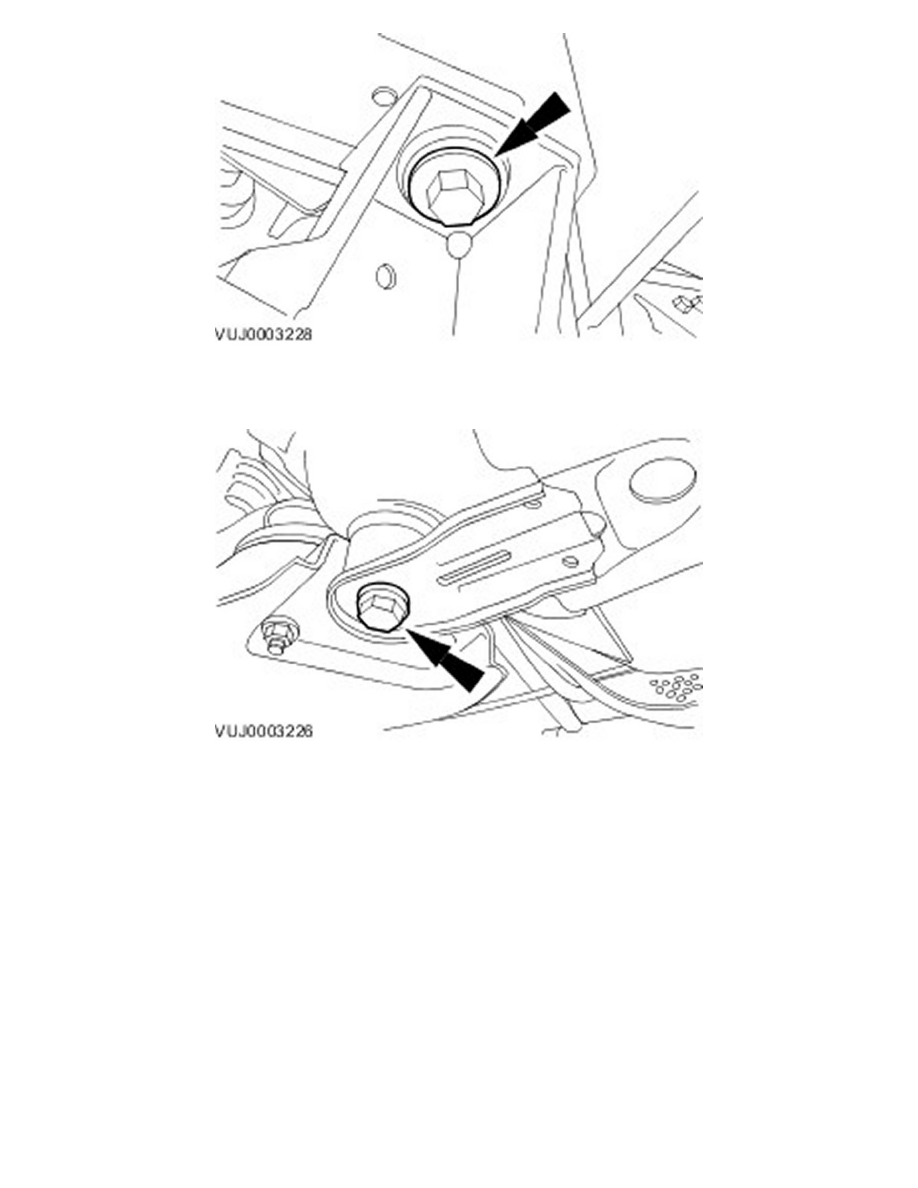

10. Loosely install the front subframe front mount retaining bolt.
Note: Left-hand shown, right-hand similar.
11. Loosely install the front subframe rear mount retaining bolts.
Note: Left-hand shown, right-hand similar.
