X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1207005.png)

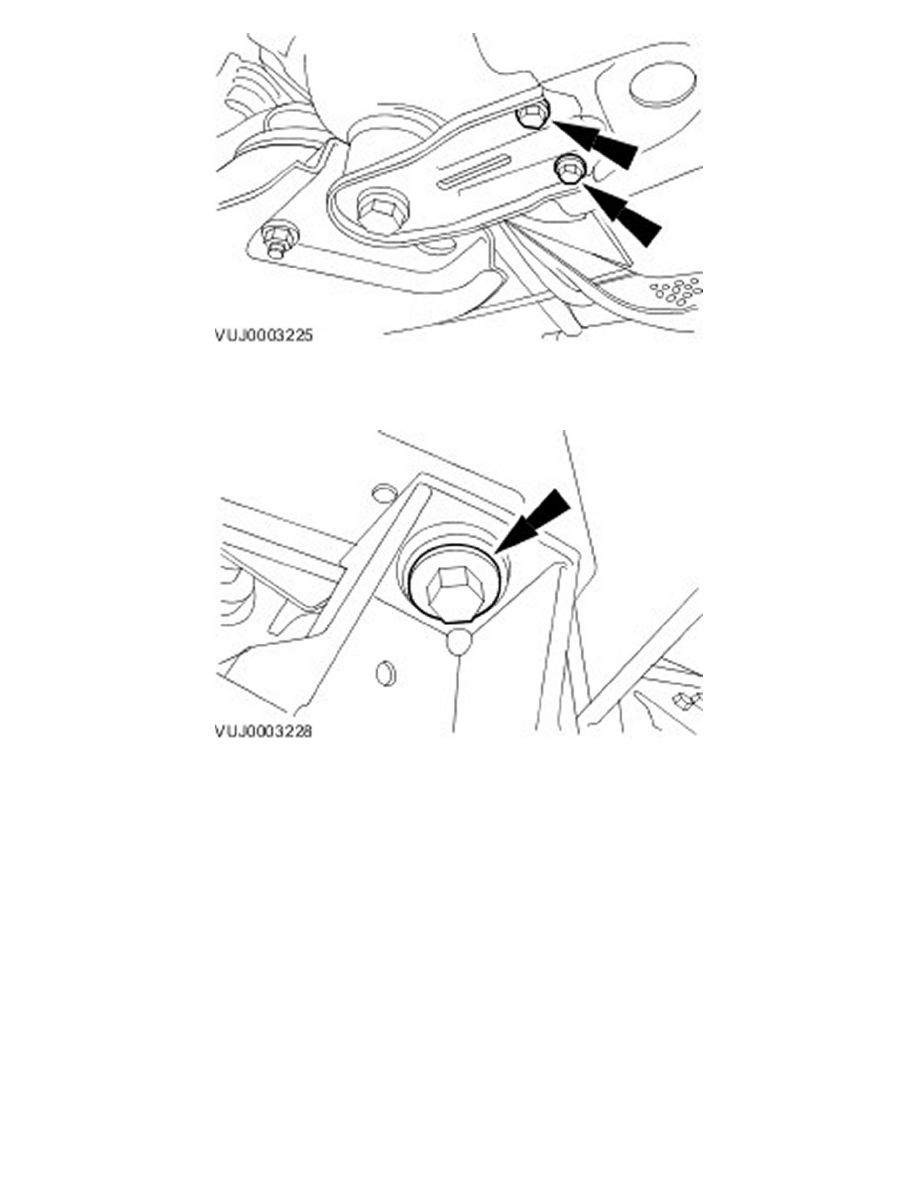

12. Loosely install the front subframe reinforcement plate retaining bolts.
Note: Right-hand shown, left-hand similar.
13. Tighten to 142 Nm.
Note: Left-hand shown, right-hand similar.
