Power and Ground Distribution|Locations|Page 5636 > < Circuit Breaker 1 (In TIPM)|Page 5632

Liberty 4WD V6-3.7L (2009)

Page 1
background image

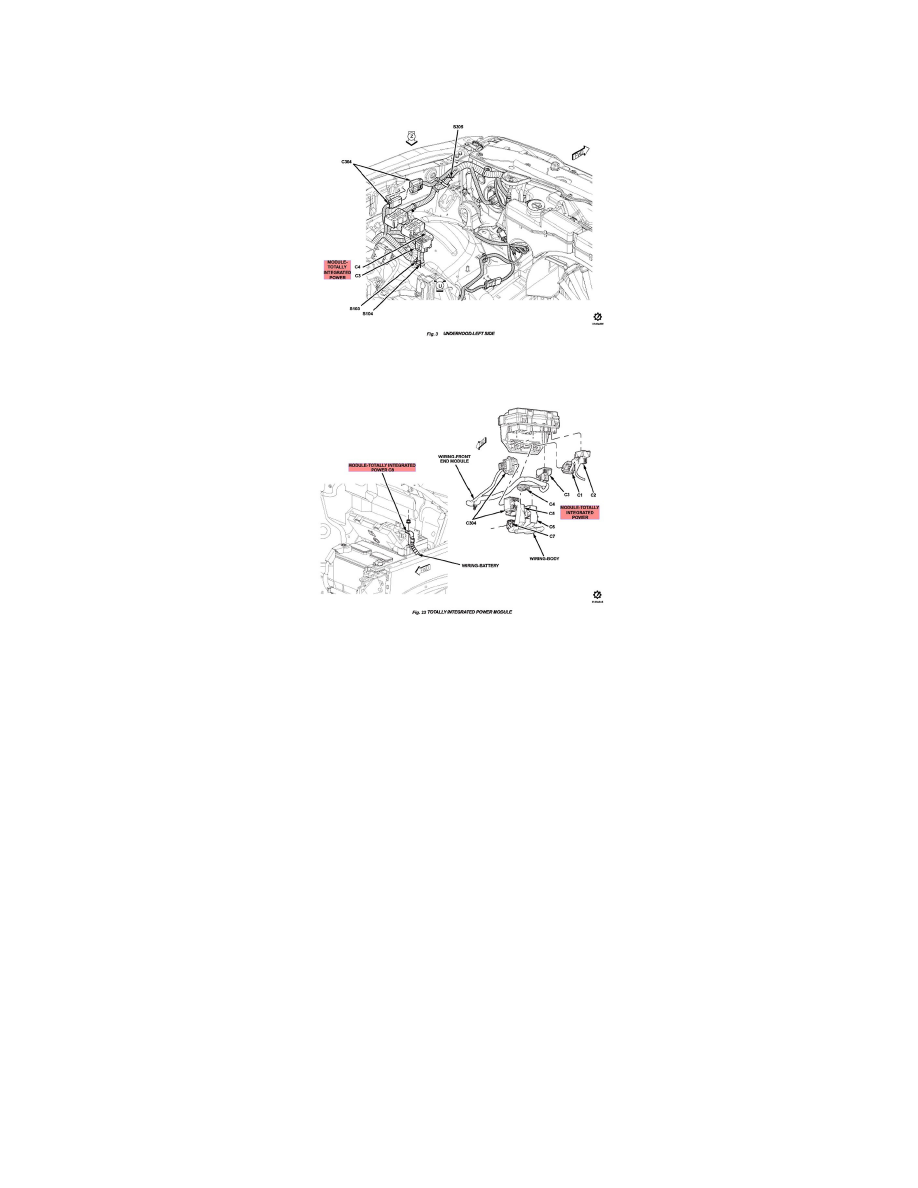

Fuse: Locations

Totally Integrated Power Module (TIPM)

Underhood-Left Side

Totally Integrated Power Module

Power and Ground Distribution|Locations|Page 5636 > < Circuit Breaker 1 (In TIPM)|Page 5632
