Amanti V6-3.5L (2006)
Cruise Control Switch: Testing and Inspection
CONTROL SWITCH (A TYPE)
MEASURING RESISTANCE
1. Disconnect the cruise control switch connector from the control switch.

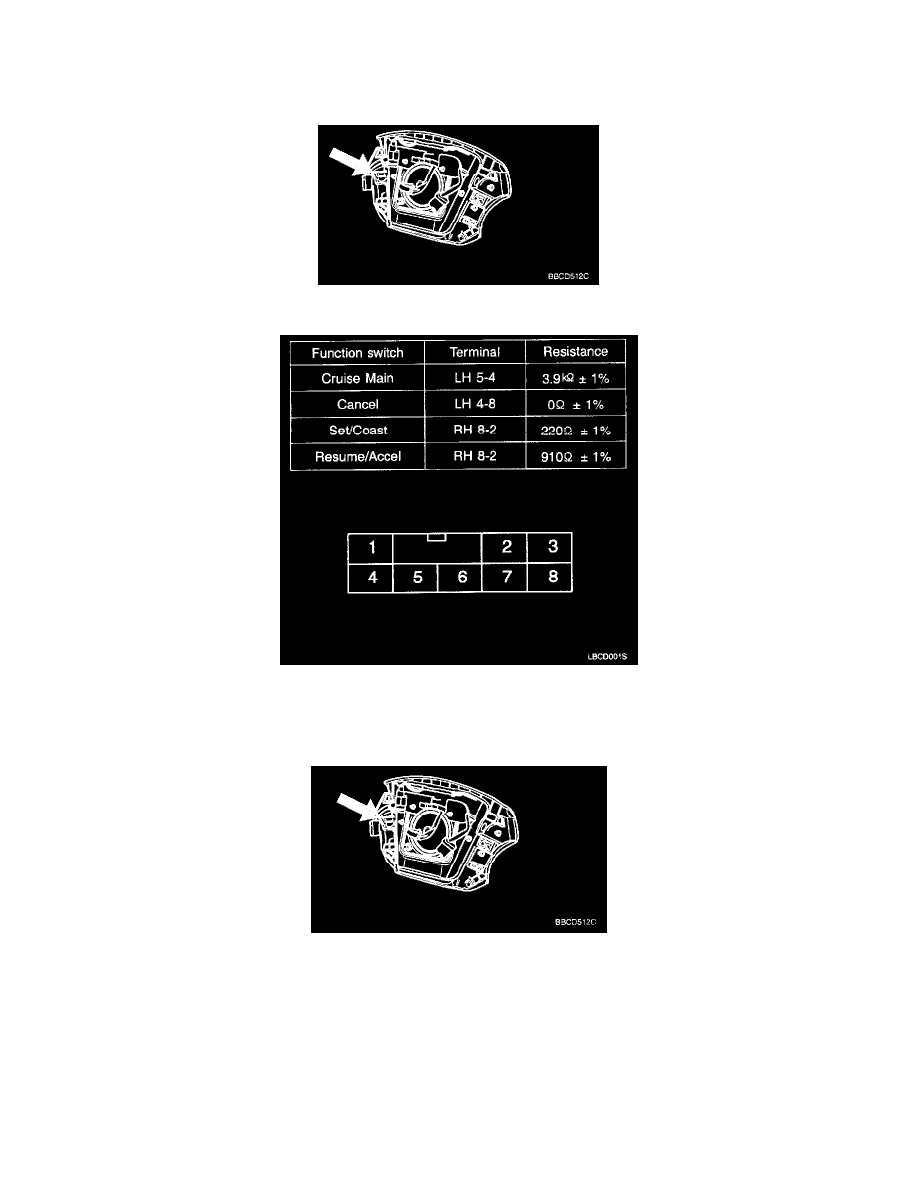

2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
3. If not within specification, replace switch.
MEASURING VOLTAGE
1. Connect the cruise control switch connector to the control switch.
