Flywheel: Specifications
- Make
- Kia
- Model
- Forte
- Engine
- L4-2.0L
- Year
- 2010
- Section
- Flywheel › Specifications
Transmission and DrivetrainSpecifications
Flywheel: Specifications
Flywheel

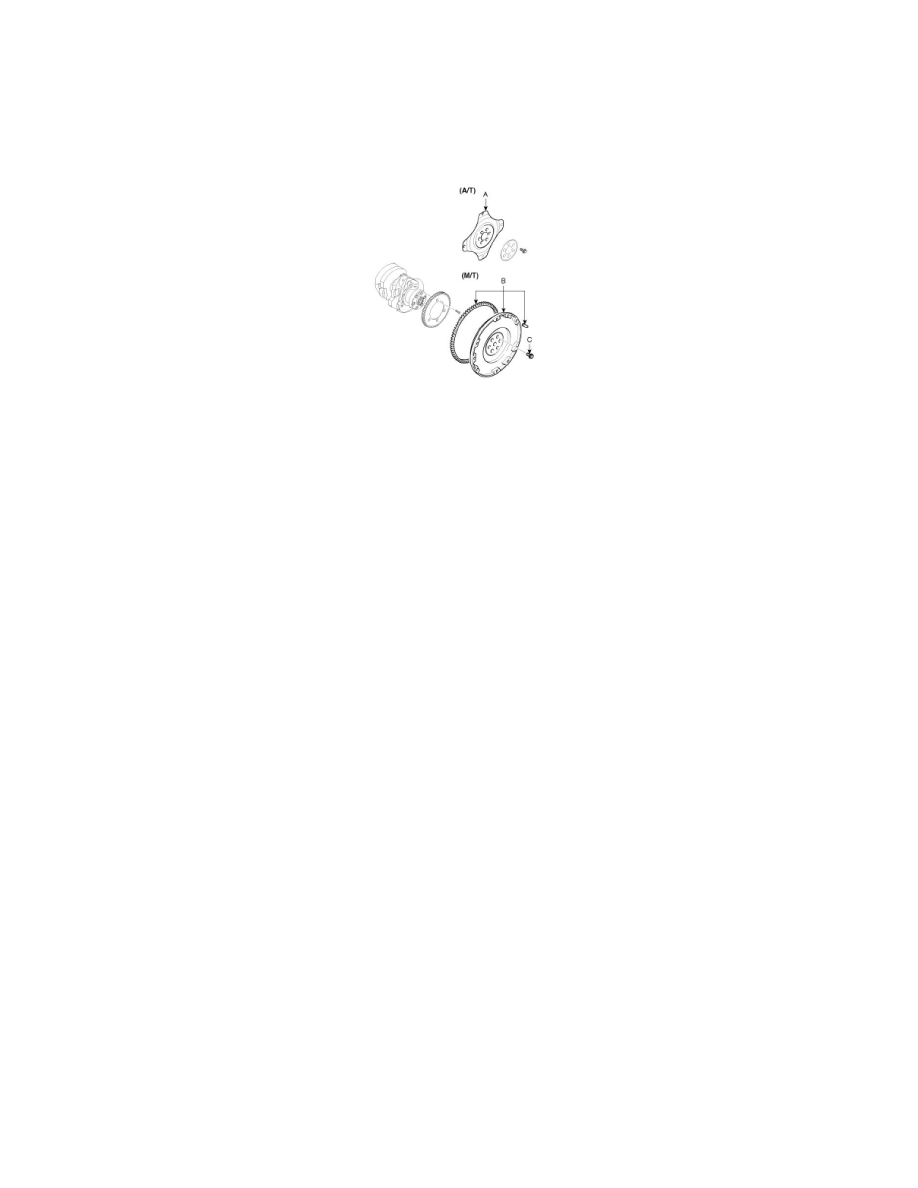

Install the drive plate (AT only) or fly wheel (MT only).
Tightening torque :......................................................................................................................................117.7 - 127.5N.m (12 - 13kgf.m, 86.8 - 94.0lb-ft)
NOTE:
-
Always use new flywheel (drive plate) bolts(C).
-
Apply sealant to the screw part (8mm from the end of the bolt) when using new flywheel bolts.
Sealant: Three bond 2403, Loctite 200 or 204
