Optima L4-2.4L (2001)
<2.5 L V6 ENGINE>

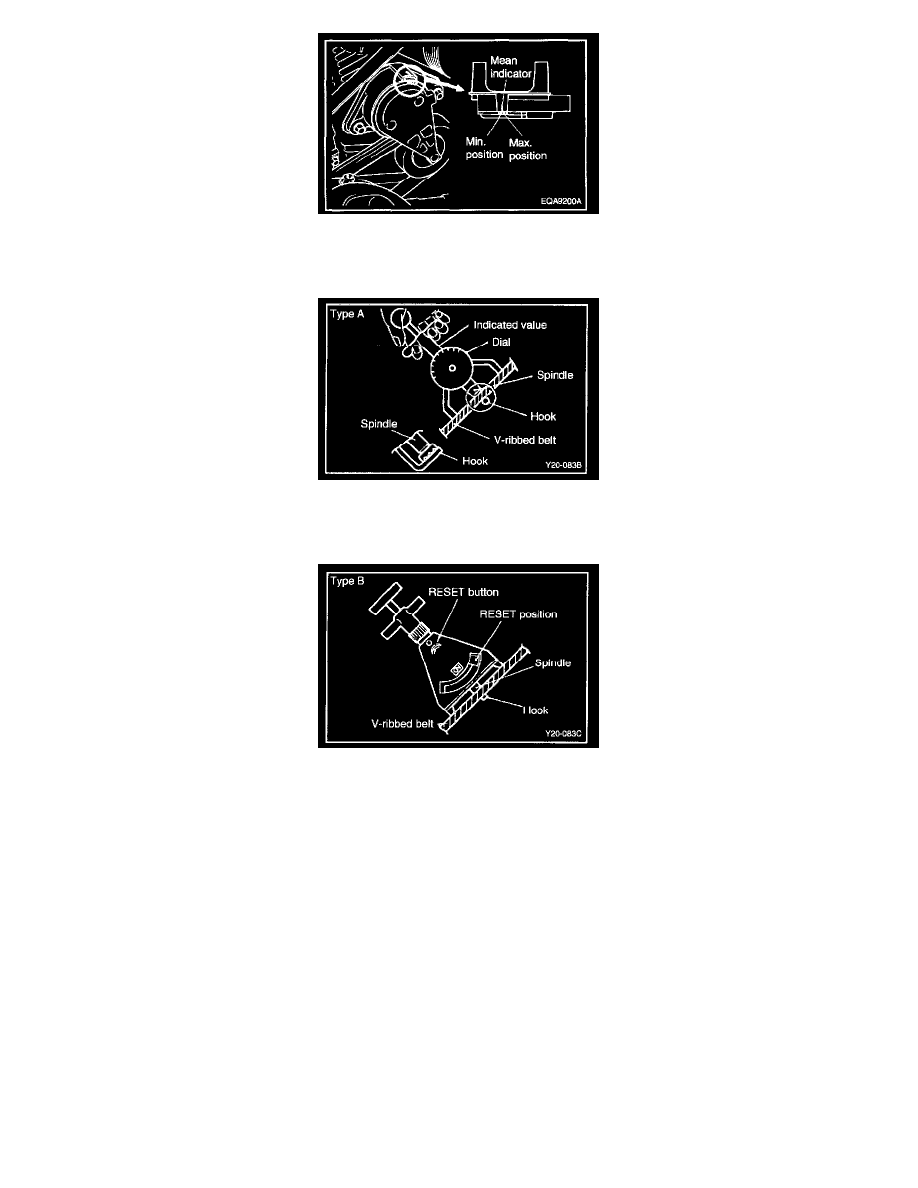

1. If the mean indicator is positioned over the max. position, replace the drive belt.
2. When replacing the drive belt, must position the mean indicator between min. position and max. position.
Type A tension gauge
Do not let the dial section of the tension gauge contact other objects during measurement.
Type B tension gauge
1. When measuring, turn the reset button in the direction of the arrow to set the gauge needle to the RESET position.
2. When the tension gauge is removed from the belt, the needle will still indicate the tension. Read the tension after removing the gauge.
