Kia Rondo V6-2.7L (2009)07 · Brakes and Traction Control
07 · Brakes

Brake Pedal Assy: Diagrams

Make
Kia
Model
Rondo
Engine
V6-2.7L
Year
2009
Section
Brake Pedal Assy › Diagrams
Brakes and Traction ControlDiagrams · page 1 of 4
background image

Brake Pedal Assy: Diagrams

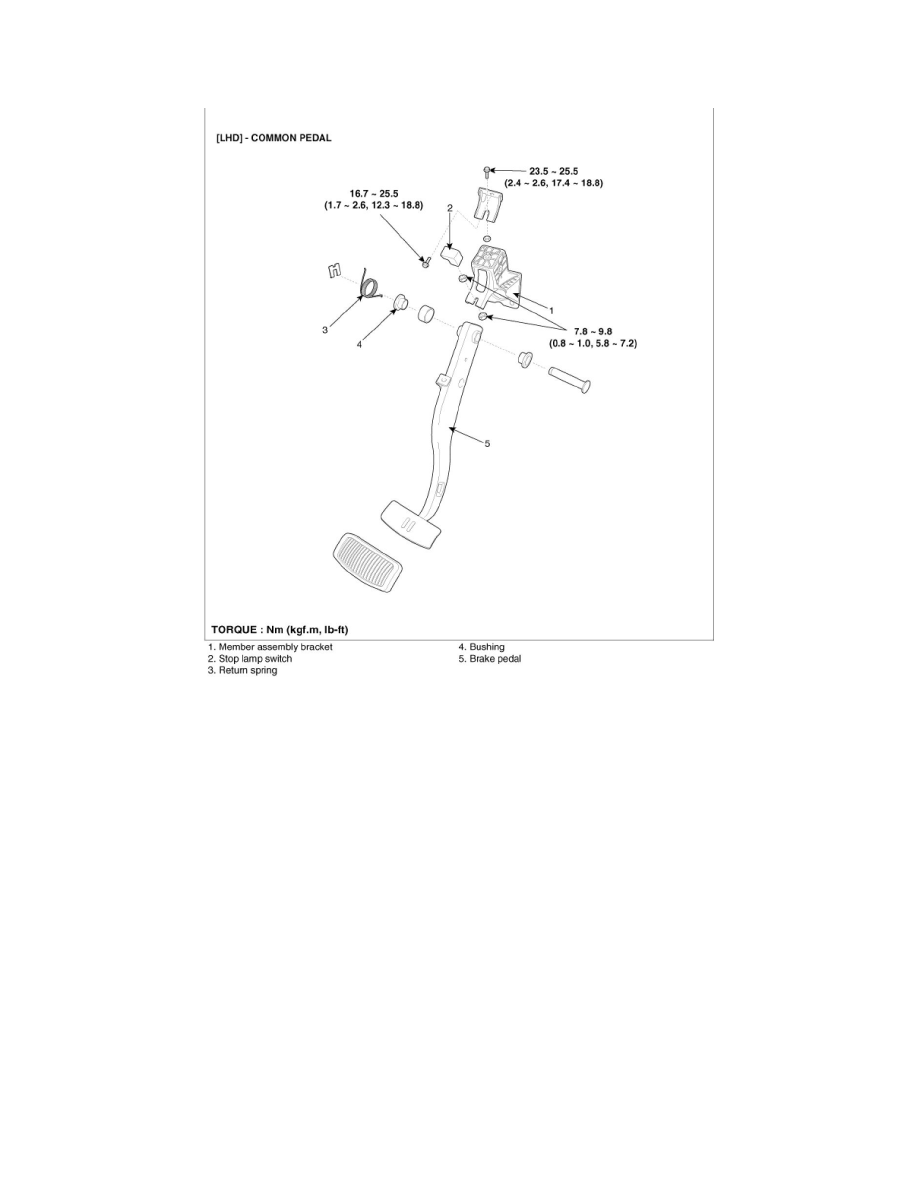

COMPONENTS
