Alternator: Specifications

Make

Kia

Model

Rondo

Engine

V6-2.7L

Year

2009

Section

Charging System › Alternator › Specifications

Starting and ChargingSpecifications · page 1 of 3

Alternator: Specifications

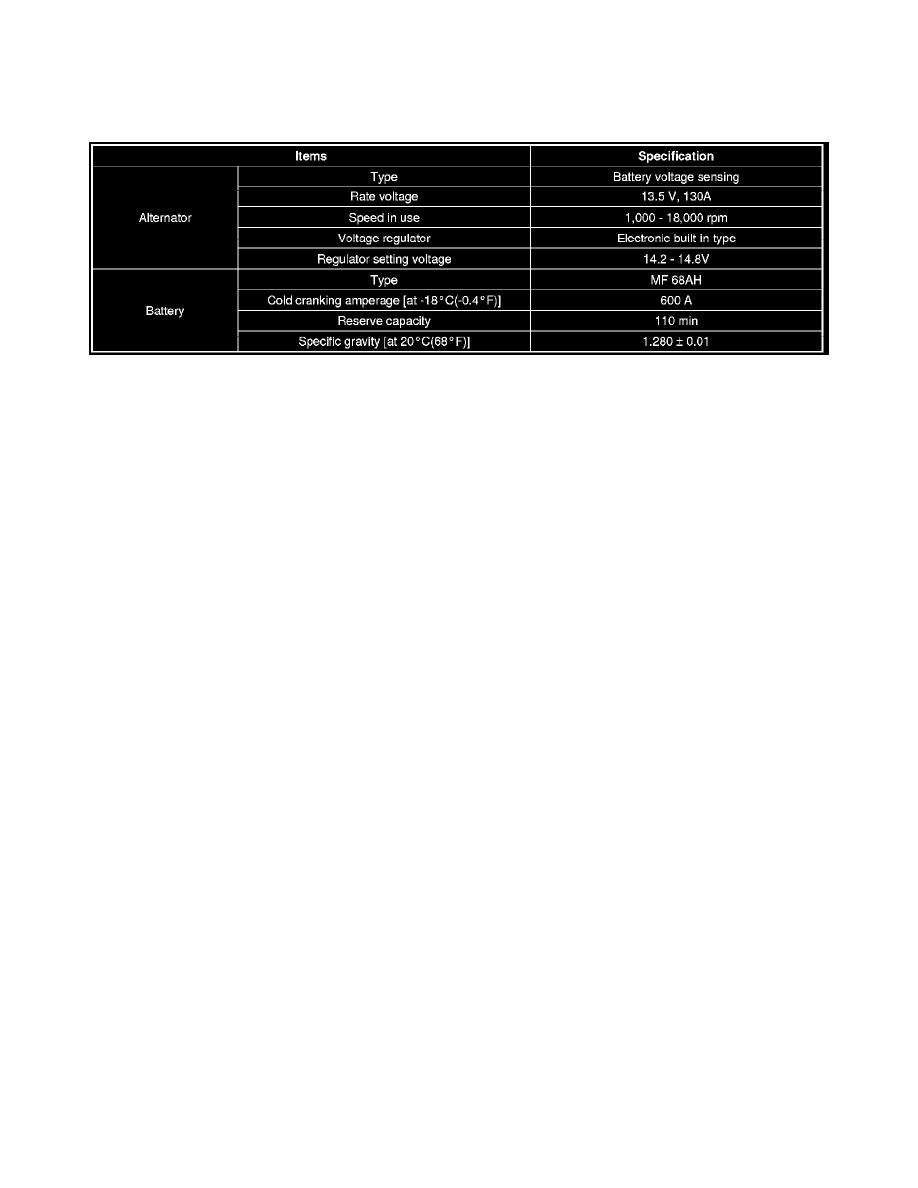

SPECIFICATION

CHARGING SYSTEM

NOTE:

-

COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2 V or greater at a
specified temperature.

-

RESERVE CAPACITY RATING is amount of time a battery can deliver 25 A and maintain a minimum terminal voltage of 10.5 V at 26.7 °C
(80.1 °F).
