Wheels: Testing and Inspection

Wheel And Tire Runout

1. Raise vehicle and place it on safety stands.

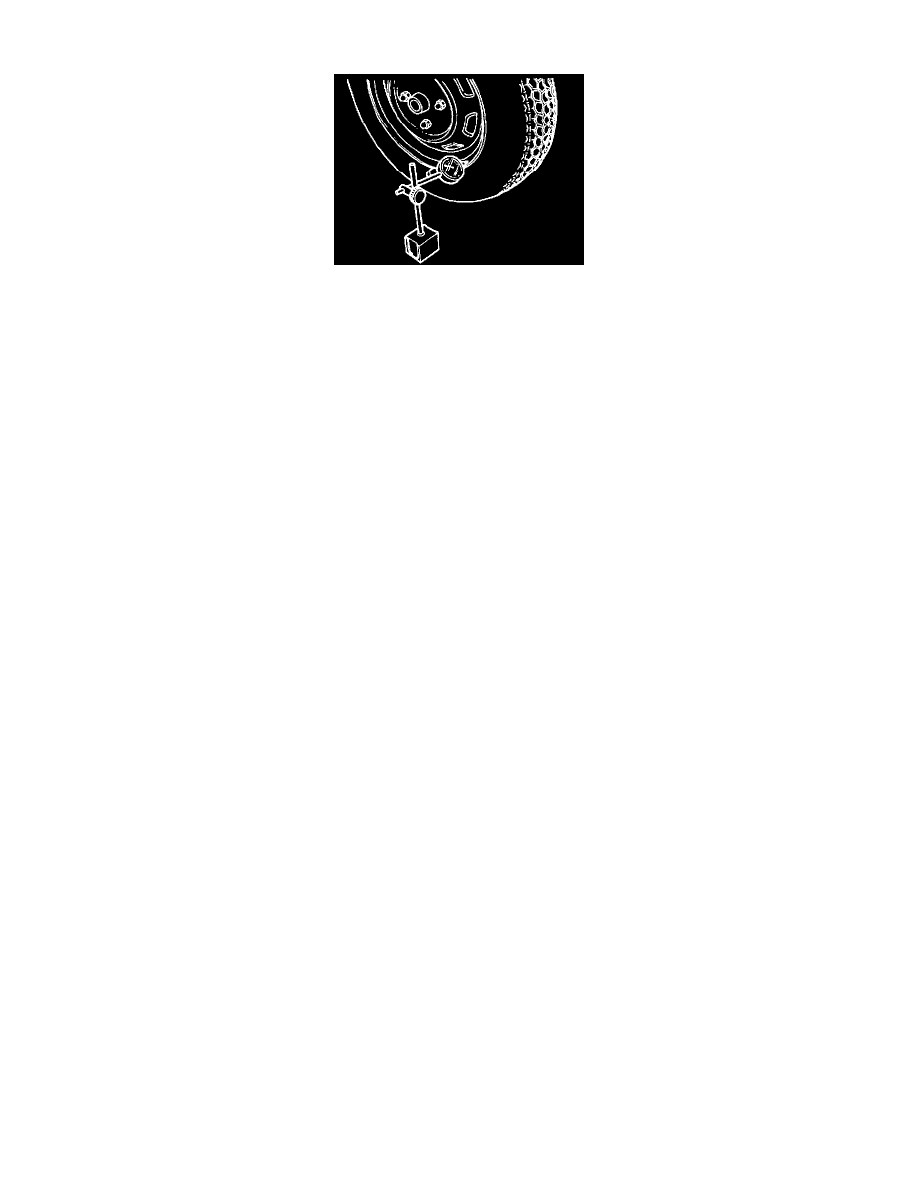

2. Set dial indicator probe against wheel, and measure runout through one full revolution.

Runout: Wheel 0.06 inch (1.5 mm) maximum
Tire 0.08 inch (2.0 mm) maximum

3. Replace wheel if necessary

Notice;  Check wheel balance after replacement of a wheel or tire.
