Sedona EX V6-3.5L (2002)
Installation

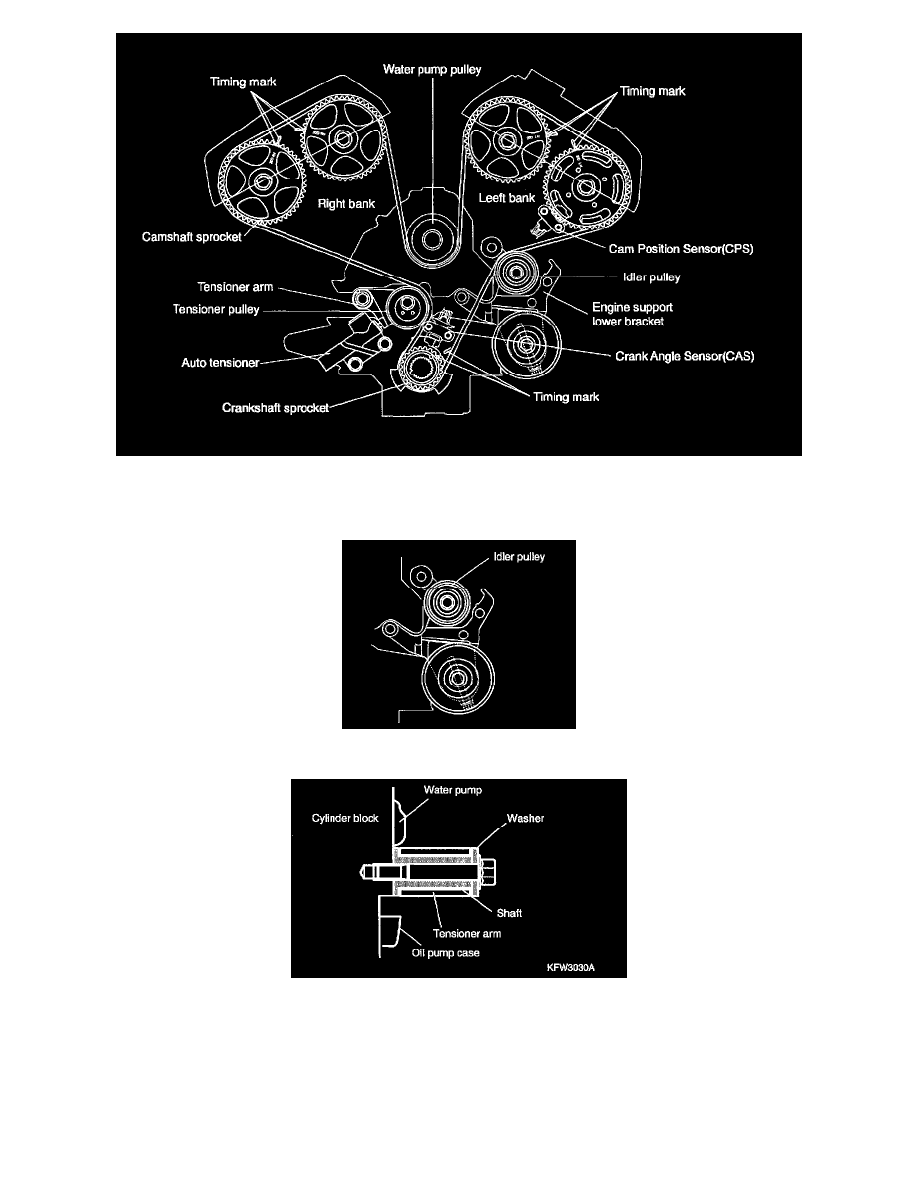

Method of installing timing belt and auto tensioner
1. Install the idler pulley to the engine support lower bracket.
2. Install the tensioner arm, shaft and plain washer to the cylinder block.
Tightening torque: 35 - 55 Nm (350 - 550 kg-cm, 25.82 - 40.57 ft. lbs.)
