Sedona EX V6-3.5L (2002)

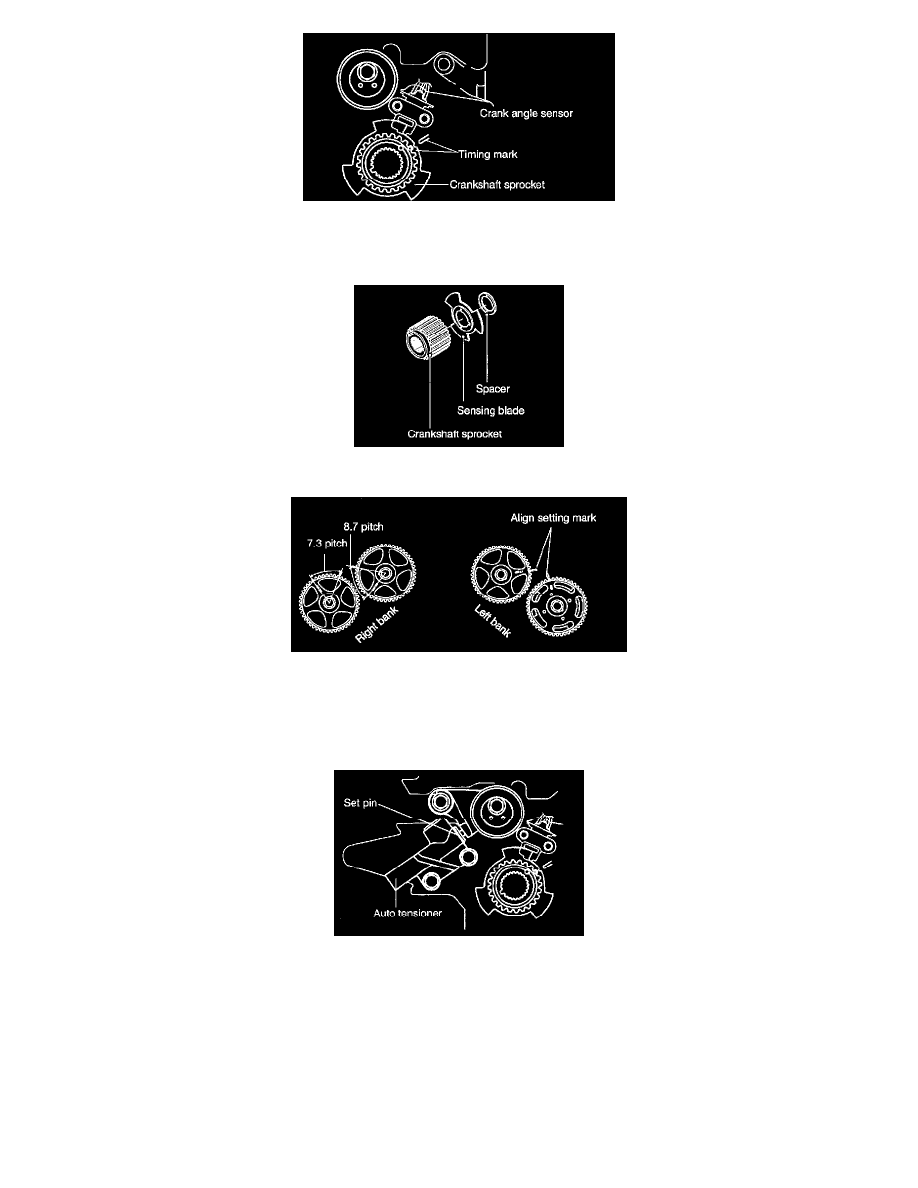

3. Install the crankshaft sprocket.
Notice: Confirm if timing marks coincide with.
Caution: Align the spacer with a pin, and assemble it exerting even force not to deform the crankshaft sensing blade.
4. Install the camshaft sprocket. Align it like initial state as shown.
Caution: When installing camshaft sprocket, tighten the bolt holding hexagonal part of camshaft to prevent it from turning.
5. Install the auto tensioner to the oil pump case.
Caution: At this time the auto tensioner's set pin should be assembled completely.
