Kia Sedona EX V6-3.5L (2002)08 · Starting and Charging
08 · Electrical

Battery: Specifications (page 4 of 5)

Make
Kia
Model
Sedona EX
Engine
V6-3.5L
Year
2002
Section
Battery
Starting and ChargingSpecifications · page 4 of 5
Battery: Specifications (page 4 of 5) – Kia Sedona EX V6-3.5L (2002)

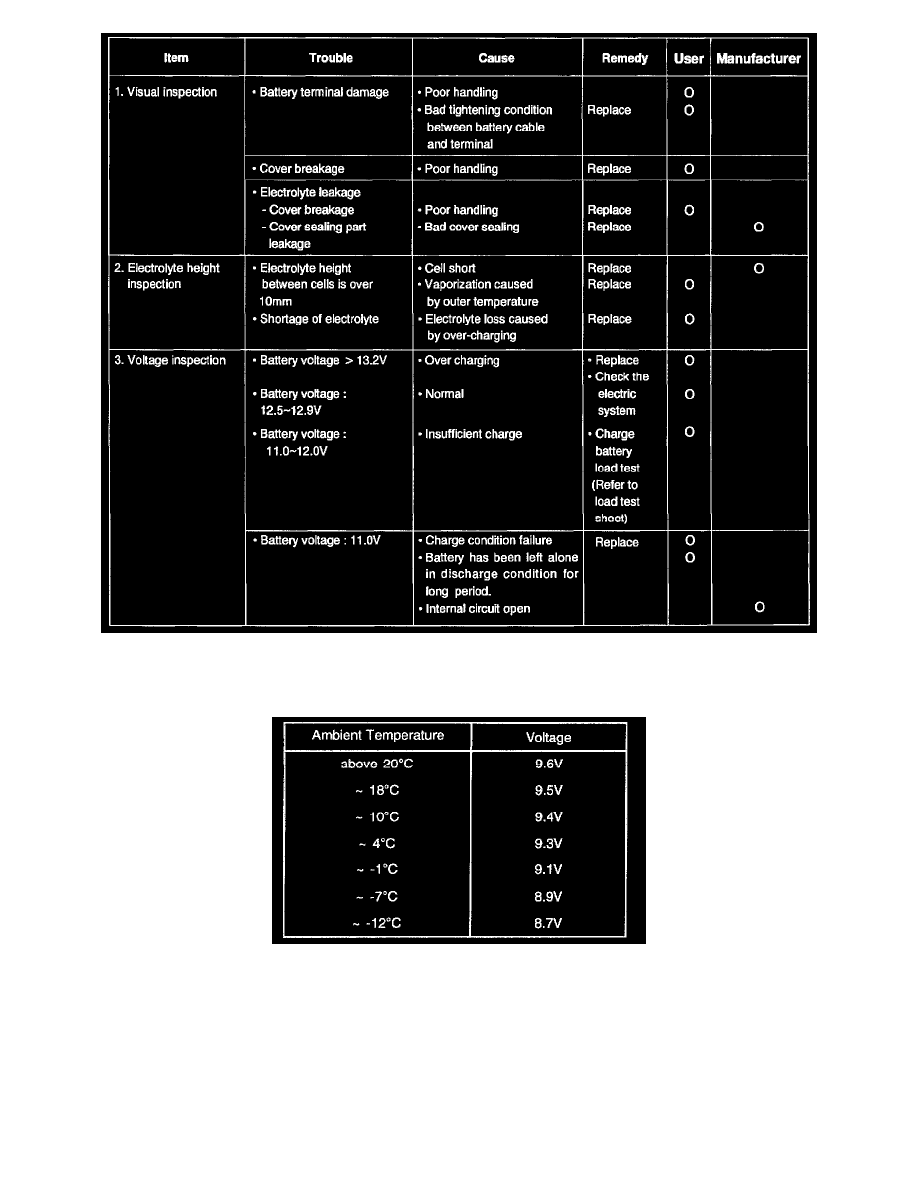

2. Checking Sheet

3. Load test

1. When discharging the battery during 15 seconds at half currency of C.C.P, the voltage of battery should be greater than the voltage as shown

below.

2. When the voltage is not within specification, perform the 2nd load test again, and if still not within specification, do the recharge.
3. If the battery voltage (left alone for 2 hours after recharging) is over 12.5 V and the voltage after load test is over the standard value, this

battery can be used

Battery visual inspection (2)

1. Make sure ignition switch is in the Off position and all accessories are Off.
