Spectra L4-2.0L (2004)

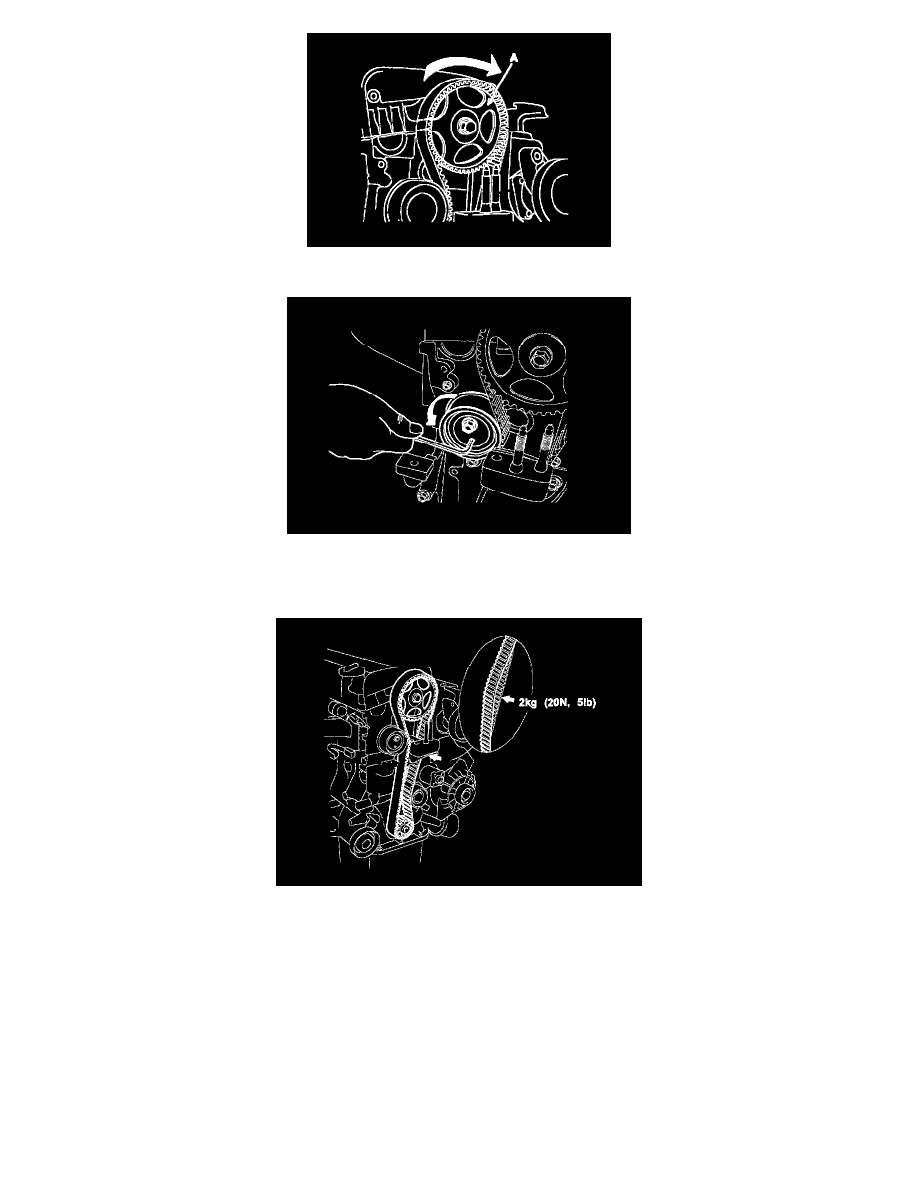

1) Rotate the crankshaft clockwise (view from front) through angle equivalent to two teeth (18°) of camshaft sprocket(A).
2) Using a hex - wrench, apply tension to the timing belt in the clockwise direction so that there is no slack in the belt on the tension side.
3) Tighten the tensioner bolt.
Tightening torque: 42.2 - 53.9Nm (4.3 - 5.5 kg-m, 31.1 - 39.8 ft. lbs.)
4) Recheck the belt tension. When the tension side of timing belt is pushed horizontally with a moderate force [approximately 2kg (20 N, 5 lbs.)
], the timing belt cog end sags in approximately 4 - 6mm (0.16 - 0.24 inch).
10. Turn the crankshaft two turns in the operating direction (clockwise) and realign crankshaft sprocket and camshaft sprocket timing mark.
