Cruise Control Module: Locations (page 3 of 4)
- Make
- Kia
- Model
- Spectra5
- Engine
- L4-2.0L
- Year
- 2005
- Section
- Cruise Control Module
Cruise ControlLocations · page 3 of 4
Cruise Control Module: Service and Repair
CRUISE CONTROL SYSTEM
REMOVAL
1. Disconnect battery negative cable.
2. Disconnect cruise control cable from throttle body.

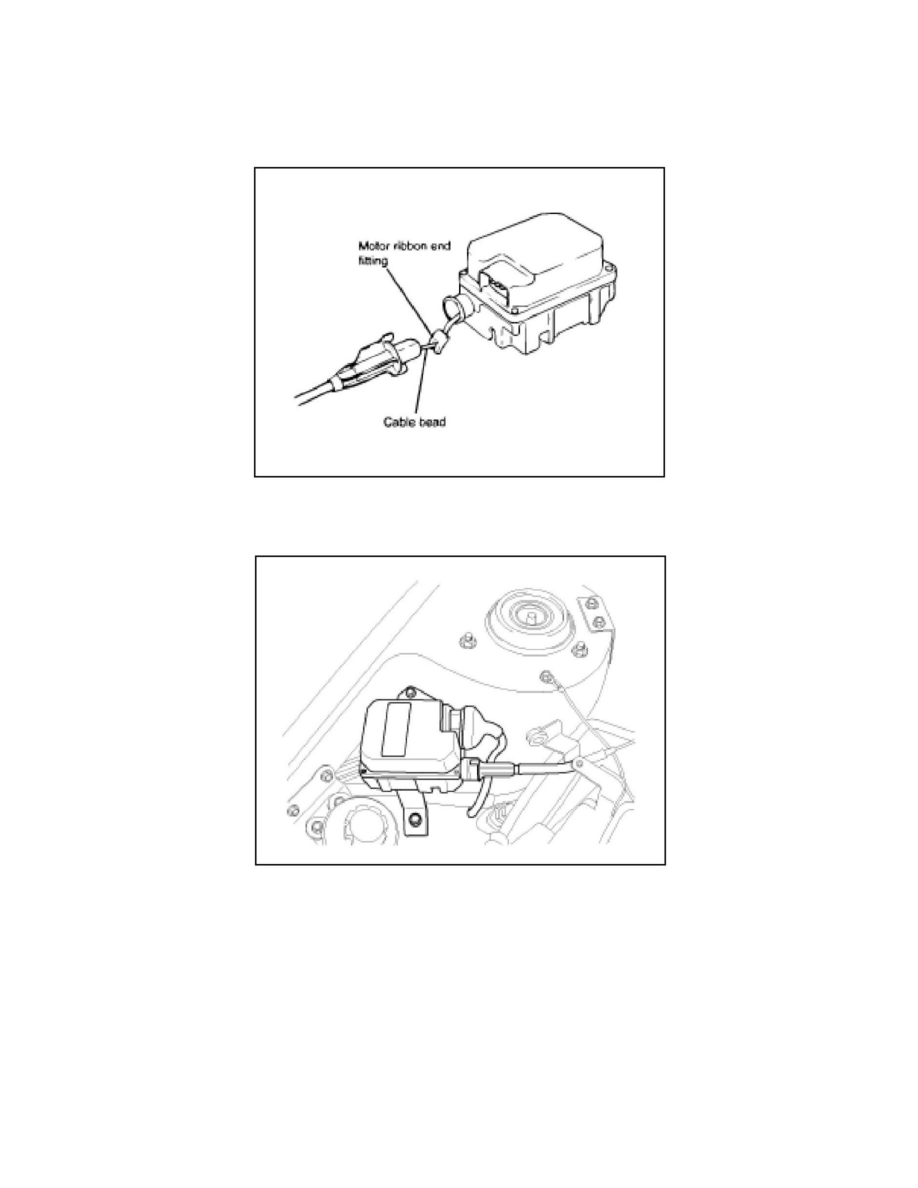

3. Disconnect cruise control cable from cruise control module.
4. Disconnect control module connector from cruise control module.
5. Remove one bolt and two nuts securing control module with bracket.
6. Remove control module with bracket from engine compartment.
7. Remove three bolts attaching cruise control module to bracket.
