Camshaft in cylinder head - R.R. with head removed

Make

Lancia

Model

Thesis Factory Service Manual

Year

2002–2009

Section

Tiiming system › Camshaft in cylinder head - R.R. with head removed

EngineCamshaft in cylinder head - R.R. with head removed

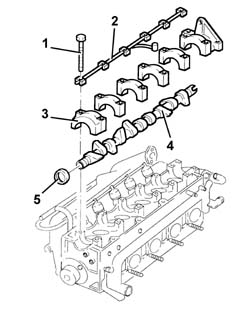

Camshaft in cylinder head - R.R. with head removed

Operation 1036B14 · CAMSHAFT (1) IN CYLINDER HEAD (1)

2.4 JTD 10V

Removing

	Description	Code	Function
2a	Support	1.860.470.000	Service cylinder head

	Description	Code	Function
1b	Support for counter-torque	1.860.831.000	Loosen/tighten driven toothed pulley bolt

	Description	Code	Function
1b	Counter-torque	1.860.831.001	Loosen/Tighten driven toothed pulley bolt

Refitting

	Value - daNm	Fastening	Component	Ø
	(cylinder head side) 1.4 - 2.0	Bolt	CAMSHAFT CAPS	M7

	Description	Code	Function
1b	Fitting tool	1.860.824.000	Fitting camshaft front oil seal

	Value - daNm	Fastening	Component	Ø
	11.0 ÷ 15.9	Bolt	TOOTHED DRIVEN PULLEY	M12

	Description	Code	Function
	Support for counter-torque	1.860.831.000	Loosen/tighten driven toothed pulley bolt

	Description	Code	Function
	Counter-torque	1.860.831.001	Loosen/Tighten driven toothed pulley bolt

	Value - daNm	Fastening	Component	Ø
	(Cylinder head side) 2.3 - 3.3	Bolt	VACUUM UNIT	M8

	Description	Code	Function
	Support	1.860.470.000	Service cylinder head

	Description	Code	Function
	Support	1.860.470.000	Service cylinder head
