Rear seat BACKREST COVER - R.R.

Operation 7050D30 · REAR SEAT COVERS/UPHOLSTERY

Removing

- 7050A10 rear seat - r+r

- 7050A87 JOINT COVER GUARD for (one), left or right individual seat - R.R. with seat removed

- 7050B12 rear seat head restraint - r r (all)

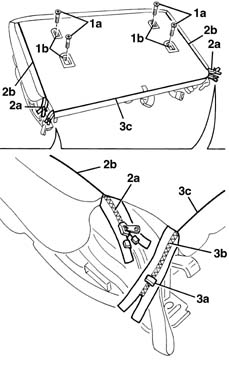

1. Undo the bolts (1a) and remove the trims (1b) at the back of the backrest cover.

2. Using the side zip fastenings (2a) completely open the side sections (2b) of the backrest cover.

3. Using pliers, remove the end clip (3a) then open the lower zip fastening (3b) along the entire lower section (3c) of the backrest cover.

1. Lift up the backrest cover (1a) slightly and release the retaining duct (1b) from the frame profile (1c).

1. Lift up the cover (1a) and release it from the head restraint guide bushes (1b).

2. Keep the cover and upholstery.

1. Disconnect the velcro for the cover from the upholstery.

2. Release the cover from the perimeter of the upholstery.

3. Using a screwdriver, release the retainers (3a) from the cover metal wire (3b), then separate the cover (3c) from the upholstery (3d).

1. Using a screwdriver, release the retainer (1a) and extract all the head restraint guide bushes (1b) releasing the positioning tab (1c) from the housing (1d).

Refitting

Check that the cover is undamaged.

1. Position the backrest cover (1a) and fit the head restraint guide bushes (1b) in position.

Attach the retainers to the metal wire for the upholstery.

Carefully fit the cover on the upholstery and attach the velcro.

Attach the retaining duct to the profile of the frame.

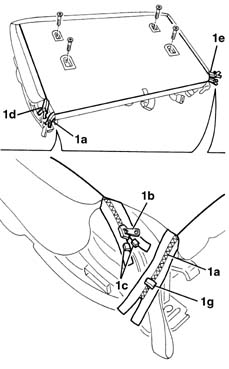

1. To close the zip fastening (1a), use the zip (1b) after having removed the hooks (1c) using pliers.

2. After having closed the zip fastenings (1a), (1d), (1e), in order to prevent them being opened accidentally, fit the retaining hooks (1c) and (1g) to the ends of the actual zip fastenings.
