SUN ROOF - Wiring diagram

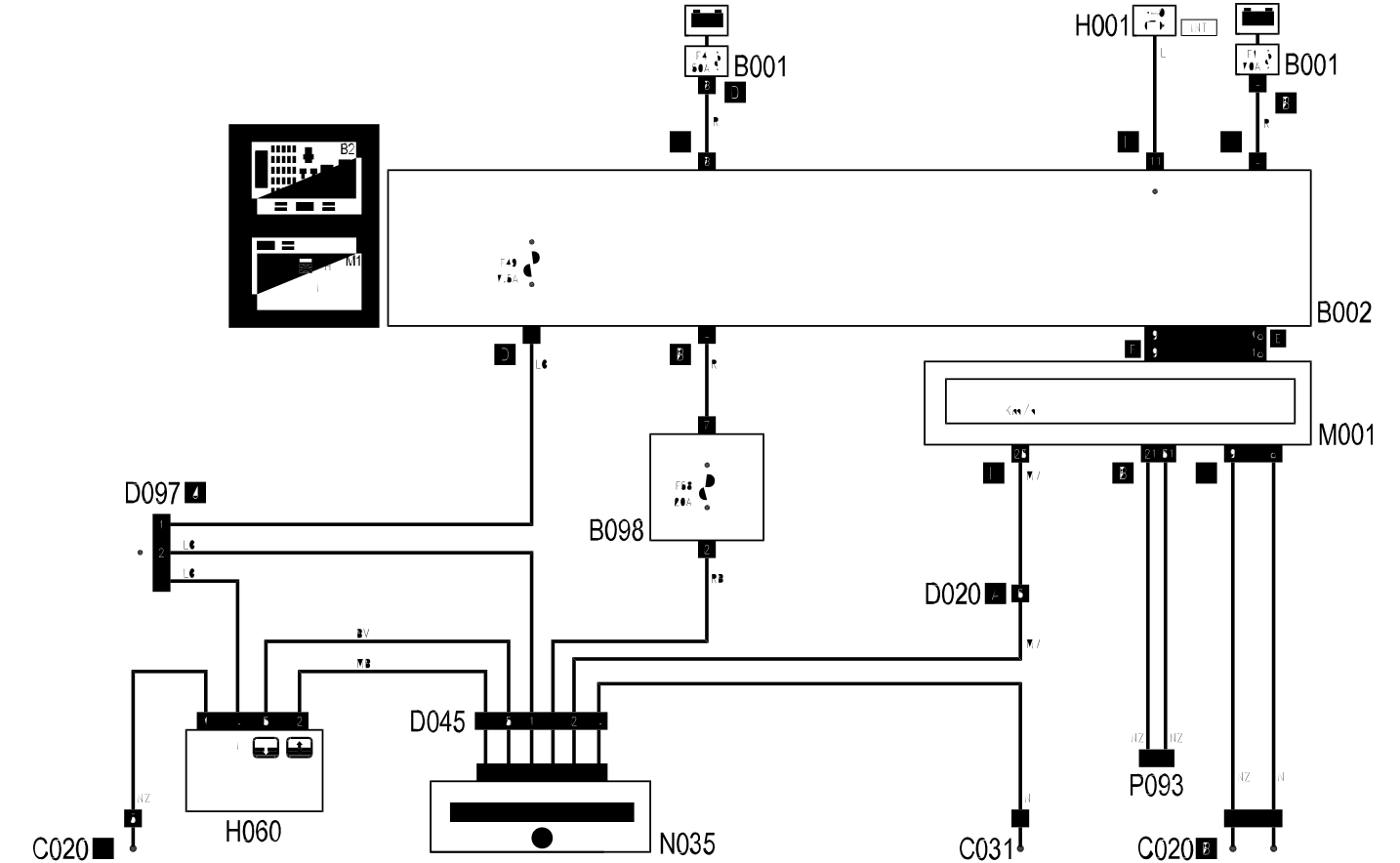

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B98 | Additional fuse box | |
| B98 | Supplementary fuse box | |
| C20 | Passenger side dashboard earth | |
| C31 | Rear right earth | |
| D20 | /Rear dashboard coupling | |
| D45 | Sun roof / rear coupling | |
| D97 | Short circuiting coupling | |
| H1 | Ignition switch | 5520A |
| H60 | Sun roof switch | |
| H60 | Sun roof switch | 7030B |
| M1 | Body computer | 5505A |
| N35 | Sun roof motor | |
| N35 | Sun roof motor | 7030B |
| P93 | Aerial for alarm and central locking receiver |
