Description: Instrument Pack
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0234 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col WG | Cct 2 |
| 4 | OG | 5 |
| 5 | SR | 2 |
| 6 | RS | 8 |
| 7 | RS | 5 |
| 8 | B | 2 |
| 9 | BW | 8 |
| 10 | RS | 8 |
| 13 | BW | 8 |
| 14 | BW | 2 |
| 16 | YS | 5 |
Description: Instrument Pack

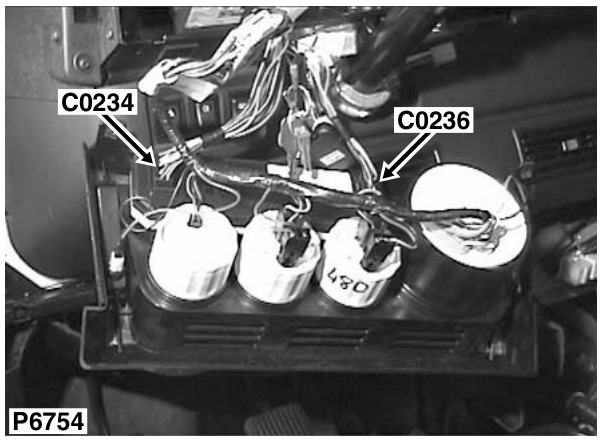

Location: Behind instrument pack
Colour: BLACK Gender: Female
