Description: Instrument Pack
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0236 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col UW | Cct 2 |
| 2 | GW | 2 |
| 3 | WO | 2 |
| 4 | RY | 2 |
| 5 | O | 20 |
| 6 | BK | 2 |
| 7 | BU | 2 |
| 8 | WB | 2 |
| 9 | BR | 2 |
| 10 | LGP | 2 |
| 11 | RS | 5 |
| 12 | BY | ALL |
| 13 | WN | ALL |
| 16 | WG | 2 |
| 17 | NY | 2 |
| 18 | GR | 2 |
| 20 | RB | 2 |

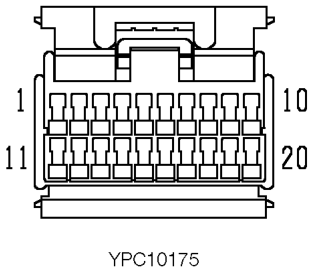

Description: Instrument Pack

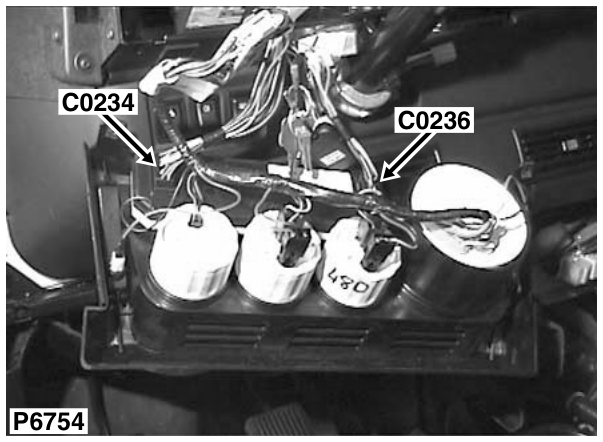

Location: Behind instrument pack
Colour: BLACK Gender: Female
