Colour: WHITE Gender: Female
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0242 Switch - Window - Front - RH › Colour: WHITE Gender: Female
ConnectorsColour: WHITE Gender: Female
| Cav 1 | Col B | Cct 27 |
| 2 | SO | 27 |
| 3 | OU | ALL |
| 4 | OR | ALL |
| 6 | RO | ALL |

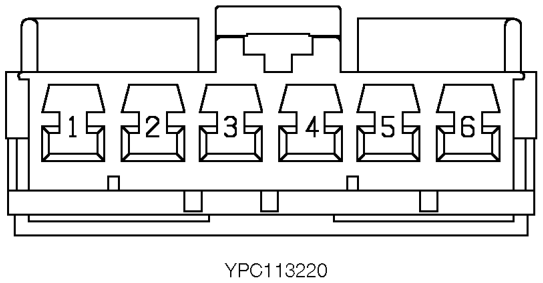

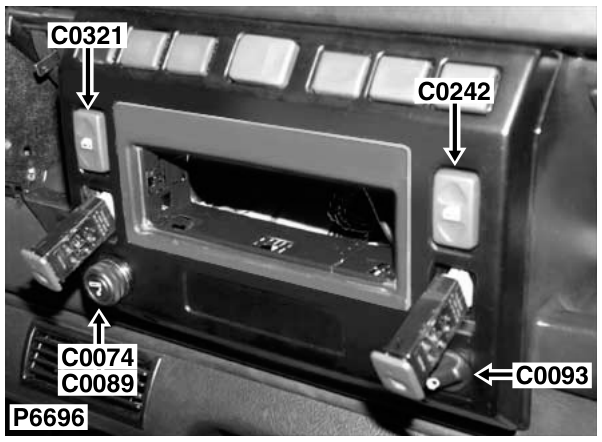

Description: Switch - Window - Front - RH Location: Behind centre of fascia
Colour: WHITE Gender: Female
