Description: Header
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0285 Header › Description: Header

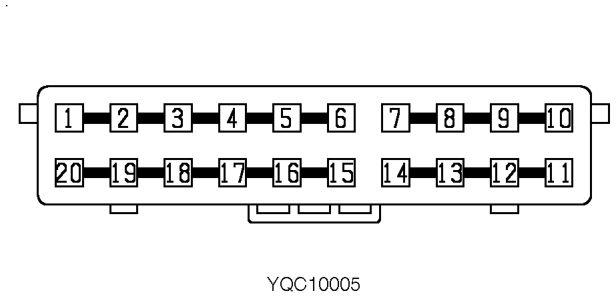

ConnectorsDescription: Header
| Cav 1 | Col WG | Cct ALL |
| 2 | WG | ALL |
| 3 | WG | ALL |
| 4 | WG | 27 |
| 5 | WG | 26 |
| 6 | WG | 25 |
| 7 | PB | ALL |
| 8 | PB | 19 |
| 9 | PB | ALL |
| 10 | PB | ALL |
| 11 | WG | 2 |
| 12 | WG | ALL |
| 13 | WG | ALL |
| 14 | WG | ALL |
| 15 | WG | ALL |
| 16 | WG | ALL |
| 17 | WG | ALL |
| 18 | WG | 7 |
| 19 | WG | ALL |
| 20 | WG | ALL |
Description: Header

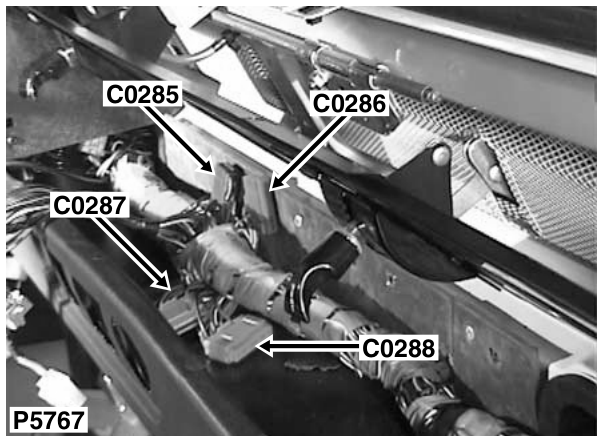

Location: Behind centre of fascia
Colour: BLUE Gender: Female
