Description: Header
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0286 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col WG | Cct ALL |
| 2 | WG | 19 |
| 3 | B | 19 |
| 5 | RB | ALL |
| 6 | RB | ALL |
| 7 | RB | ALL |
| 8 | RB | ALL |
| 10 | WB | ALL |
| 11 | WB | ALL |
| 12 | WB | ALL |
| 17 | B | 19 |
| 18 | B | ALL |
| 19 | B | ALL |
| 20 | B | ALL |

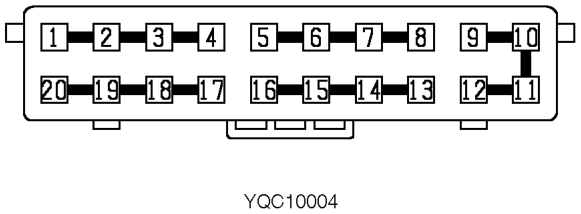

Description: Header

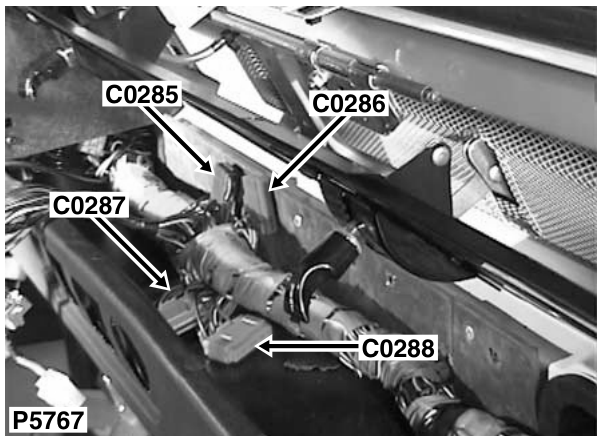

Location: Behind centre of fascia
Colour: YELLOW Gender: Female
